MAXHUB - F5 Series

Teach Naturally
Work Seamlessly

Smarter Interaction
Stronger Participation

Transform traditional instruction into active learning.
MAXHUB F5 Series brings AI into every stage of teaching, making lesson preparation, classroom interaction, and learning feedback more efficient than ever.

Smarter Interaction
Stronger Participation

AI Whiteboard with Smart Handwriting

Intelligently recognizes handwritten notes and converts them into subject-specific tools.

AI Teaching Inspiration

Generate lesson content, classroom activities, and fresh teaching ideas with AI.

AI Interactive Games

Create classroom games with AI and customizable templates.

Multi-Subject Teaching Toolkit

Access subject-specific teaching tools on demand for different classroom scenarios.

Effortless Classroom Quizzes

Turn your lesson into classroom exercises for real-time interaction.

AI Whiteboard with Smart Handwriting

Intelligently recognizes handwritten notes and converts them into subject-specific tools.

AI Teaching Inspiration

Generate lesson content, classroom activities, and fresh teaching ideas with AI.

AI Interactive Games

Create classroom games with AI and customizable templates.

Multi-Subject Teaching Toolkit

Access subject-specific teaching tools on demand for different classroom scenarios.

Effortless Classroom Quizzes

Turn your lesson into classroom exercises for real-time interaction.

Made for Long Lessons
Clear for Every Student¹

MAXHUB F5 Series delivers a more comfortable and immersive learning experience for every student.

Made for Long Lessons
Clear for Every Student¹

MAXHUB F5 Series delivers a more comfortable and immersive learning experience for every student.

Advanced Eye Comfort

In real classrooms, students sit in different positions. MAXHUB F5 Series ensures clear and comfortable viewing from every seat with wide-angle optical and eye-comfort technologies.

Advanced Eye Comfort

In real classrooms, students sit in different positions. MAXHUB F5 Series ensures clear and comfortable viewing from every seat with wide-angle optical and eye-comfort technologies.

Clear Sound in Every Corner
of the Classroom

AI Voice Enhancement with 2.2-Channel Audio

AI-based voice enhancement improves speech clarity in real time, while the 74W 2.2-channel speaker system delivers rich, balanced sound with enhanced vocal presence.

AI Voice Enhancement with 2.2-Channel Audio

AI-based voice enhancement improves speech clarity in real time, while the 74W 2.2-channel speaker system delivers rich, balanced sound with enhanced vocal presence.

Skywave Sound System for Extended Sound Reach

MAXHUB F5 Series features the Skywave Sound System with a front-facing speaker design and 88dB Sound Pressure Level (SPL), delivering clearer sound projection and up to 4× longer sound transmission distance compared with traditional speaker designs.²

Skywave Sound System for Extended Sound Reach

8-Microphone Array for Remote Learning

MAXHUB F5 Series features an 8-microphone array with AI audio processing and up to 12m voice pickup³, enabling clearer communication for remote teaching and video conferencing.

8-Microphone Array for Remote Learning

MAXHUB F5 Series features an 8-microphone array with AI audio processing and up to 12m voice pickup³, enabling clearer communication for remote teaching and video conferencing.

See the Whole Classroom
Support Active Learning

Powered by AI classroom perception and a multi-focal camera system, MAXHUB F5 Series provides a broader view of classroom activities, helping teachers better understand participation and create more engaging learning experiences.

Multi-Focal Imaging with 5× Zoom

Capture clearer classroom views from front to back with a multi-camera, multi-focal imaging system and 5× optical zoom.

Multi-Focal Imaging with 5× Zoom

Capture clearer classroom views from front to back with a multi-camera, multi-focal imaging system and 5× optical zoom.

Engage More Students

Smart Classroom Interaction

On-device, anonymized AI analysis enables random student selection and participant counting, helping teachers quickly organize activities and encourage broader classroom participation.⁴

Smart Classroom Interaction

On-device, anonymized AI analysis enables random student selection and participant counting, helping teachers quickly organize activities and encourage broader classroom participation.⁴

Instant Classroom Feedback

Interactive response features allow students to answer with gestures and participate in polls, while teachers quickly capture responses and understand classroom feedback.⁴

Instant Classroom Feedback

Interactive response features allow students to answer with gestures and participate in polls, while teachers quickly capture responses and understand classroom feedback.⁴

Powerful Inside
Effortless in Class

Built with flagship performance for smooth, reliable, and AI-powered teaching.

High-performance Intel® Processor
Up to 32 GB RAM + 1 TB Storage
Available in 75" and 86"

Powerful Inside
Effortless in Class

Built with flagship performance for smooth, reliable, and AI-powered teaching.

High-performance Intel® Processor
Up to 32 GB RAM + 1 TB Storage
Available in 75" and 86"

MAXHUB PIVOT⁺

Unified management for campus devices and content.

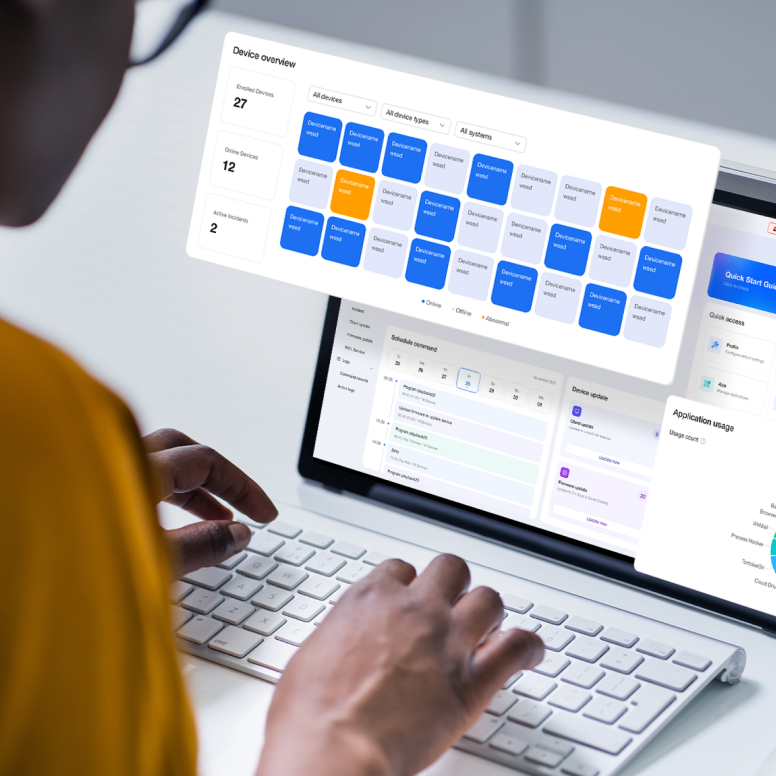

All-in-one management platform

A centralized platform for smart dashboards, device management, and app control, helping IT teams manage all classroom devices more efficiently.

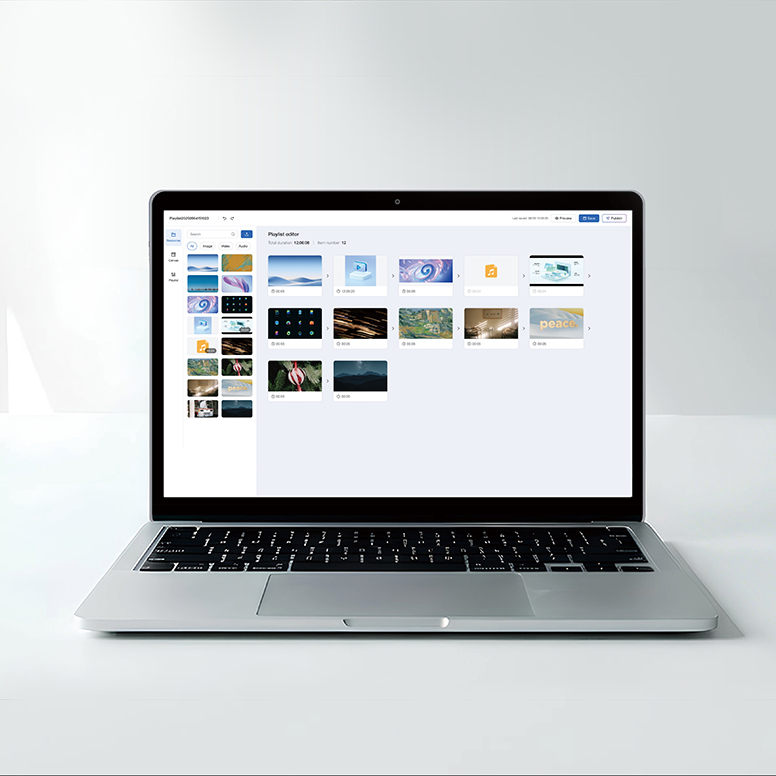

Centralized content distribution

Manage teaching materials and announcements in one platform and deliver them to classrooms or buildings for more effective school-wide communication.

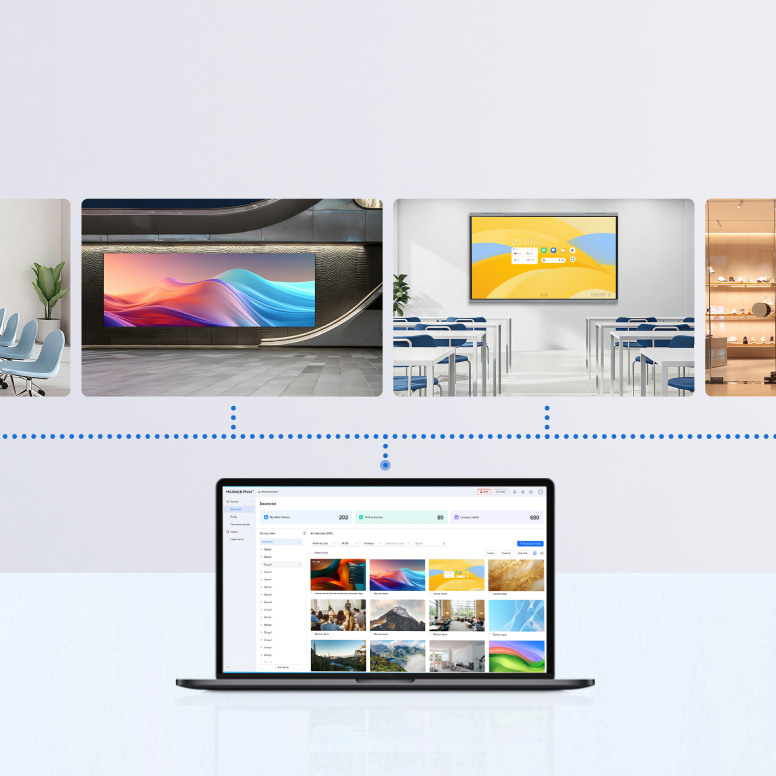

Remote operations and device management

Manage and update all MAXHUB classroom devices remotely from a single platform, including control, updates, incident management, and system monitoring, to improve IT efficiency.

Built for Reliability

IP5X Dust Protection

Engineered for durable performance in demanding classroom environments with enhanced dust resistance.

High-Transmittance Display

Delivers the same brightness with lower power consumption for greater energy efficiency.

ENERGY STAR^® Certified Efficiency

ENERGY STAR® certified for improved energy efficiency and reduced long-term operating costs.

Peace of Mind 3-Year Warranty

Backed by a 3-year limited warranty and up to 50,000* hours of operation under standard usage conditions.

*Based on MAXHUB laboratory testing under controlled conditions.

MAXHUB Education Solution
Designed for Every Classroom

Ready for Today’s Classroom. Built for the Future of Learning.

MAXHUB Education Solution
Designed for Every Classroom

Ready for Today’s Classroom. Built for the Future of Learning.

Specifications

Model	F7550	F8650
Display
Diagonal Size (inch)	75	86
Aspect Ratio	16:9	16:9
Resolution	3840(H)×2160(V)	3840(H)×2160(V)
Viewing Angle	178° (H/V)	178° (H/V)
Panel Type	Wide Viewing Angle Panel	Wide Viewing Angle Panel
Panel Brightness	400 nits (typ.) 450 nits (max.)	400 nits (typ.) 450 nits (max.)
Side-Viewing Brightness	≥ 1/3 of center brightness (±60°)	≥ 1/3 of center brightness (±60°)
Contrast Ratio	5,500:1 (typ.) 50,000:1 (dynamic)	5,500:1 (typ.) 50,000:1 (dynamic)
Color Depth	1.07B (10bit)	1.07B (10bit)
Color Gamut (typ.)	98% sRGB	98% sRGB
Color Accuracy	ΔE≤1	ΔE≤1
Glass	Zero parallax 3mm thickness 9H tempered	Zero parallax 3mm thickness 9H tempered
Surface Technology	Anti-glare, 25% haze	Anti-glare, 25% haze
Eyes Care	TÜV Flicker Free TÜV Low Blue Light	TÜV Flicker Free TÜV Low Blue Light
Refresh Rate	60Hz	60Hz
Response Time	6.5ms	6.5ms
Backlight Unit	DLED	DLED
Touch System
Touch Technology	Infrared recognition	Infrared recognition
Touch Point	50 Points touch	50 Points touch
Accuracy	±1.5mm	±1.5mm
MAXHUB Think&Ink	Direct Annotation Multi-level Object Recognition Single Pen Dual Color	Direct Annotation Multi-level Object Recognition Single Pen Dual Color
Operating System (Built-in)
System	Android 15.0	Android 15.0
CPU	Octa-core A55	Octa-core A55
GPU	Mali-G52 MC1	Mali-G52 MC1
Operating System (MT82S PC Module)
System	Windows 11 Pro	Windows 11 Pro
CPU	13th Generation Intel® Core™ i5 Processor	13th Generation Intel® Core™ i5 Processor
GPU	Intel® UHD Graphics for 13th Gen Intel® Processor	Intel® UHD Graphics for 13th Gen Intel® Processor
RAM	8GB(Up to 32GB)	8GB(Up to 32GB)
ROM	256GB(Up to 1TB)	256GB(Up to 1TB)
Connectivity
I/O Ports (Interactive Display)	HDMI IN × 2 USB 2.0 × 1 USB 3.0 × 2 Touch × 1 USB Type-C × 1 AUDIO OUT × 1 RS232 × 1	HDMI IN × 2 USB 2.0 × 1 USB 3.0 × 2 Touch × 1 USB Type-C × 1 AUDIO OUT × 1 RS232 × 1
I/O Ports (PC Module)	HDMI OUT × 1 USB 2.0 × 3 USB 3.0 × 3 MIC IN × 1 RJ45 × 1	HDMI OUT × 1 USB 2.0 × 3 USB 3.0 × 3 MIC IN × 1 RJ45 × 1
PC Module Slot	Module slot (40 Pins) × 1	Module slot (40 Pins) × 1
Wi-Fi Module Slot	Module slot × 1	Module slot × 1
Wi-Fi Module (SI07B)	Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz	Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz
Bluetooth	5.2	5.2
Camera
Quantity	× 5	× 5
Resolution	60MP 8MP Panorama ×1 13MP Telephoto ×2 13MP Fusion Camera ×2	60MP 8MP Panorama ×1 13MP Telephoto ×2 13MP Fusion Camera ×2
Feature	Person counting Random election Gesture recognition	Person counting Random election Gesture recognition
Audio
Audio System	SkyWave Sound System	SkyWave Sound System
Sound Channel	2.2	2.2
Speaker Power	2×8W+2×18W (output) 2×12W+2×25W (maximum)	2×8W+2×18W (output) 2×12W+2×25W (maximum)
Sound Pressure Level	88 dB (1m)	88 dB (1m)
Microphone
Quantity	8-mic array	8-mic array
Pick-up Angle	180°	180°
Pick-up Range	0~12m	0~12m
Feature	AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control)	AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control)
Environment
Operating Temperature	0℃~40℃	0℃~40℃
Storage Temperature	-20℃~60℃	-20℃~60℃
Operating Humidity	10%~90%RH	10%~90%RH
Storage Humidity	10%~90%RH	10%~90%RH
Altitude	Below 5000 meters	Below 5000 meters
Power
Power Supply	AC 100~240V 50/60Hz	AC 100~240V 50/60Hz
Power Consumption (standby)	≤0.5W	≤0.5W
Power Saving	Energy Star Certification	Energy Star Certification
