MAXHUB X3 Standard Series
Specification
MAXHUB X3 Standard Series
| Display | |
|---|---|
| Size | 55/65/75/86 inches |
| Display Ratio | 16:9 |
| Backlight | DLED |
| Resolution | 3840 (H)×2160(V) |
| Viewing Angle | Horizontal 178°, Vertical 178° |
| Touch System | |
| Glass Material | Anti-glare Tempered Glass |
| Touch Technology | Infrared |
| Touch Points | Finger or Opaque Object (≥2mm) |
| Writing Tools | ±2mm |
| Electromagnetic Stylus Accuracy | ±0.5mm |
| Camera | |
| Location | Top×1 |
| Pixels | 8 Mega Pixels |
| Automatic Control | Automatic White Balance, Adaptive Ambient Brightness |
| Lens Distortion | ≤1% |
| Smart Switch | Support |
| Microphone Array | |
| Directivity | Front |
| Pickup Distance | 8m |
| Quantity | 6 |
| Sampling Frequency | 16kHz |
| Sampling Rate | 16bit |
| Automatic Control | Automatic Gain, Automatic Noise Reduction |
| Echo Cancellation | Support |
| Auditory Localisation | Support |
| Operating System | |
| CPU | Dual A73 |
| Base Frequency | 1.2GHz |
| GPU | Mali 450×5 |
| RAM | 2GB |
| ROM | 32GB |
| Operating System | Android 7.0, Windows 10 Optional |
| PC Module | |
| PC | MAXHUB Pluggable PC Module |
| GPU | Intel® Core i5/i7 |
| RAM | DDR4 8GB/16GB |
| ROM | 128GB/256GB |
| GPU | Intel® HD Graphics |
| Environment Requirement | |
| Power | 100-240V ~ 50/60Hz |
| Altitude | Below 5000 metres |
| Standby Power Consumption | ≤0.5W |
*Data are from MAXHUB laboratory
MAXHUB X3 Standard Series
Free and boundless collaboration
Ultra-HD display | Remote Collaboration | Intelligent Writing | Interactive Mirroring | Extraordinary Performance

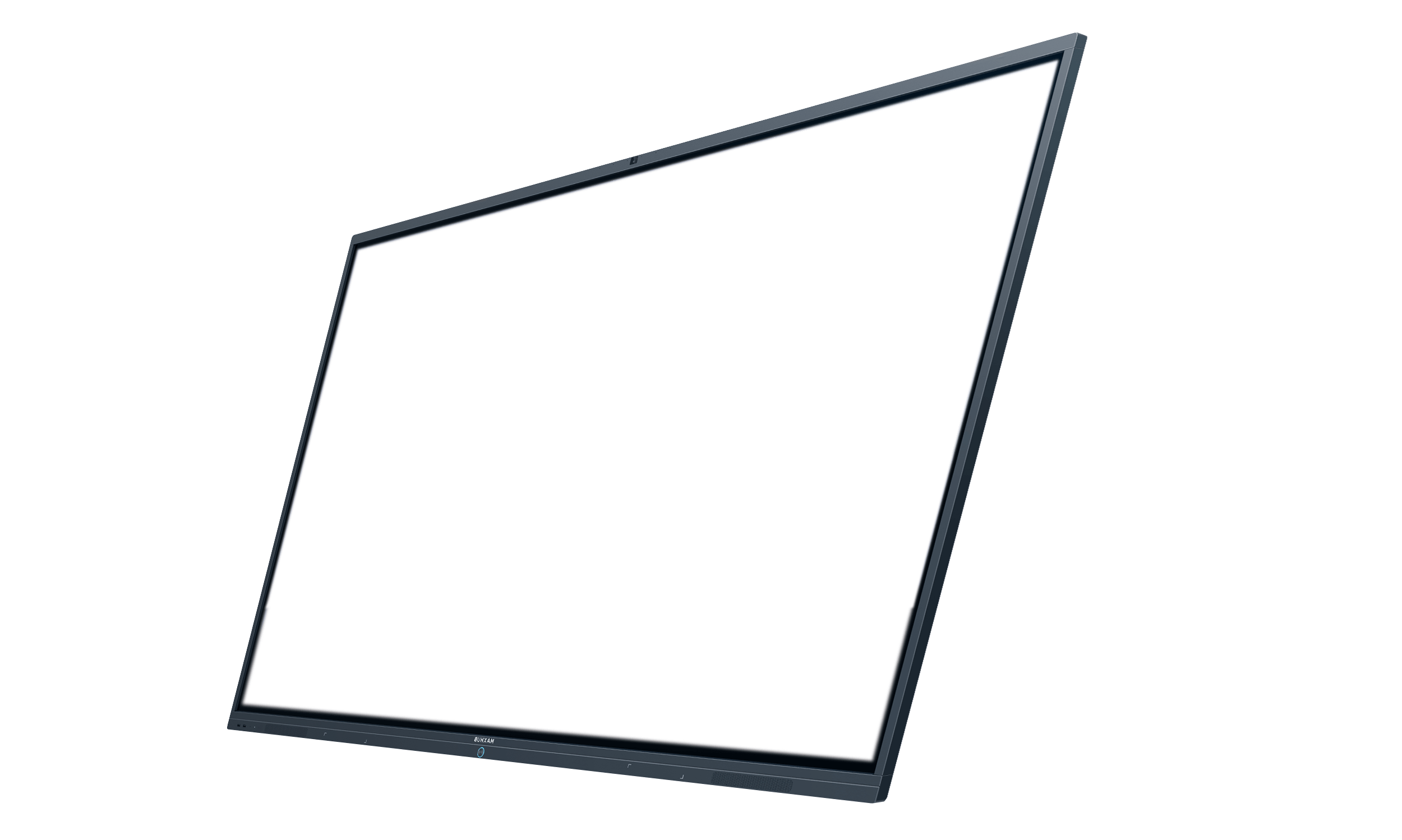

Ultra-slim bezel, ultra-large vision, ultra-sharp display
4K Ultra HD large display with ultra-slim bezel on double sides deliver wider vision and better immersive experience.
Anti-glare technology assures the sharpness of imagines, even in the bright environment.
Anti-glare technology assures the sharpness of imagines, even in the bright environment.
4K
Anti-glare UHD display
13mm
ultra-slim bezel*
Up to
98 inches
Remote collaboration, leading the fashion of boundless office
8-megapixelcamera
8mvoice picking-up*
Screen sharing
Remote mirroring
Real time writing
Intelligent writing frees your imagination
Innovative infrared touch technology delivers smooth writing experience. Intelligent and user-friendly graphic and table design satisfies your efficient writing needs.
0.04srapid response time*
±1mmtouch accuracy*
smart graphics assistant
PPT slides annotation
Multi-screen interaction eliminates the cable limitation
4K Ultra HD large display with ultra-slim bezel on double sides deliver wider vision and better immersive experience.
Anti-glare technology assures the sharpness of imagines, even in the bright environment.
Anti-glare technology assures the sharpness of imagines, even in the bright environment.
Extraordinary performance, excellent quality
Equipped with 7th Gen Intel CoreTM processors, MAXHUB X3 have strong performance and reliability,
support Android 7.0 / Windows 10 dual-system, and up to 16GB DDR4-RAM. It is also compatible with various applications. Easy operating creates efficient meetings.
support Android 7.0 / Windows 10 dual-system, and up to 16GB DDR4-RAM. It is also compatible with various applications. Easy operating creates efficient meetings.
Powerful
dual-system
Core i7
processors
16GB
RAM
*13mm ultra narrow frame was measured with 55" MAXHUB X3 Standard.
*8m voice picking-up: Under a normal speaking conditions, the voice of surrounding is 40-50db, according to the experiment data form MAXHUB Lab.
*It supports PC terminal with Windows XP, macOS 10.7 or updated versions, and smartphone or tablet with Android 4.0、iOS 7.0 or updated versions.
*0.04s response time: Data were collected based on the MAXHUB Lab environment without other interference and tested with a felt stylus pen and the Whiteboard application on MAXHUB conference flat panel, in Android/PC Channel and with 3840*2160 screen resolution machine.
*MAXHUB X3 Standard series support 1mm writing accuracy.
*Graphic Intelligent Recognition: It works with Windows system (PC module), and only supports rectangle, diamond, pointed line, triangle, polygon, and circle.
*Table insertion: It works with Windows system (PC module). You can freely add and reduce row and column if it is needed.
*Multi-terminals connection: PC terminal support windows 7, macOS 10.10 or other updated versions. Mobile devices need to have Android 5.0, iOS9.0 or later versions operating system. PC works with MAXHUB Wireless Screen Sharing Dongle. Please pair it with Conference Flat Panel first; Wireless screen sharing can be achieved on PC, smartphone and tablets with MAXHUB Mirroring Assistant application.
*4-split screen Mirroring：MAXHUB Flat Panels support up to 4 devices mirroring and displaying on the screen at the same time after the hotspot connection between smartphones/PCs/tablets and MAXHUB Conference Flat Panel.
*0.09s wireless mirroring: data were collected based on the MAXHUB Lab environment and tested with a 11" 1366*768 screen resolution 10.11 system MacBook Air connected with a 55" MAXHUB X3 Standard Conference Flat Panel.
*Mirroring with mobile device: it supports devices with Android 5.0 and later versions.
*The UI varies on different products, please refer to the products on sale.
*8m voice picking-up: Under a normal speaking conditions, the voice of surrounding is 40-50db, according to the experiment data form MAXHUB Lab.
*It supports PC terminal with Windows XP, macOS 10.7 or updated versions, and smartphone or tablet with Android 4.0、iOS 7.0 or updated versions.
*0.04s response time: Data were collected based on the MAXHUB Lab environment without other interference and tested with a felt stylus pen and the Whiteboard application on MAXHUB conference flat panel, in Android/PC Channel and with 3840*2160 screen resolution machine.
*MAXHUB X3 Standard series support 1mm writing accuracy.
*Graphic Intelligent Recognition: It works with Windows system (PC module), and only supports rectangle, diamond, pointed line, triangle, polygon, and circle.
*Table insertion: It works with Windows system (PC module). You can freely add and reduce row and column if it is needed.
*Multi-terminals connection: PC terminal support windows 7, macOS 10.10 or other updated versions. Mobile devices need to have Android 5.0, iOS9.0 or later versions operating system. PC works with MAXHUB Wireless Screen Sharing Dongle. Please pair it with Conference Flat Panel first; Wireless screen sharing can be achieved on PC, smartphone and tablets with MAXHUB Mirroring Assistant application.
*4-split screen Mirroring：MAXHUB Flat Panels support up to 4 devices mirroring and displaying on the screen at the same time after the hotspot connection between smartphones/PCs/tablets and MAXHUB Conference Flat Panel.
*0.09s wireless mirroring: data were collected based on the MAXHUB Lab environment and tested with a 11" 1366*768 screen resolution 10.11 system MacBook Air connected with a 55" MAXHUB X3 Standard Conference Flat Panel.
*Mirroring with mobile device: it supports devices with Android 5.0 and later versions.
*The UI varies on different products, please refer to the products on sale.
Integrated and light assembly, easy remote sharing
Integrated design, built-in camera, voice picking-up, and speaker modules.
Outstanding configuration is specially designed for multi-parties HD video conference
Leading technology, applied for presenting more fluent, clear, and stable audio and video experiences, includes 8-megapixel camera, 6 built-in array microphones,
8m voice picking-up*, auditory localization system, 2.1 channel stereo,and real human voice restored by intelligent EQ.
8m voice picking-up*, auditory localization system, 2.1 channel stereo,and real human voice restored by intelligent EQ.
8-megapixel
camera
6
built-in array microphones
8m
voice picking-up
2.1
channel stereo

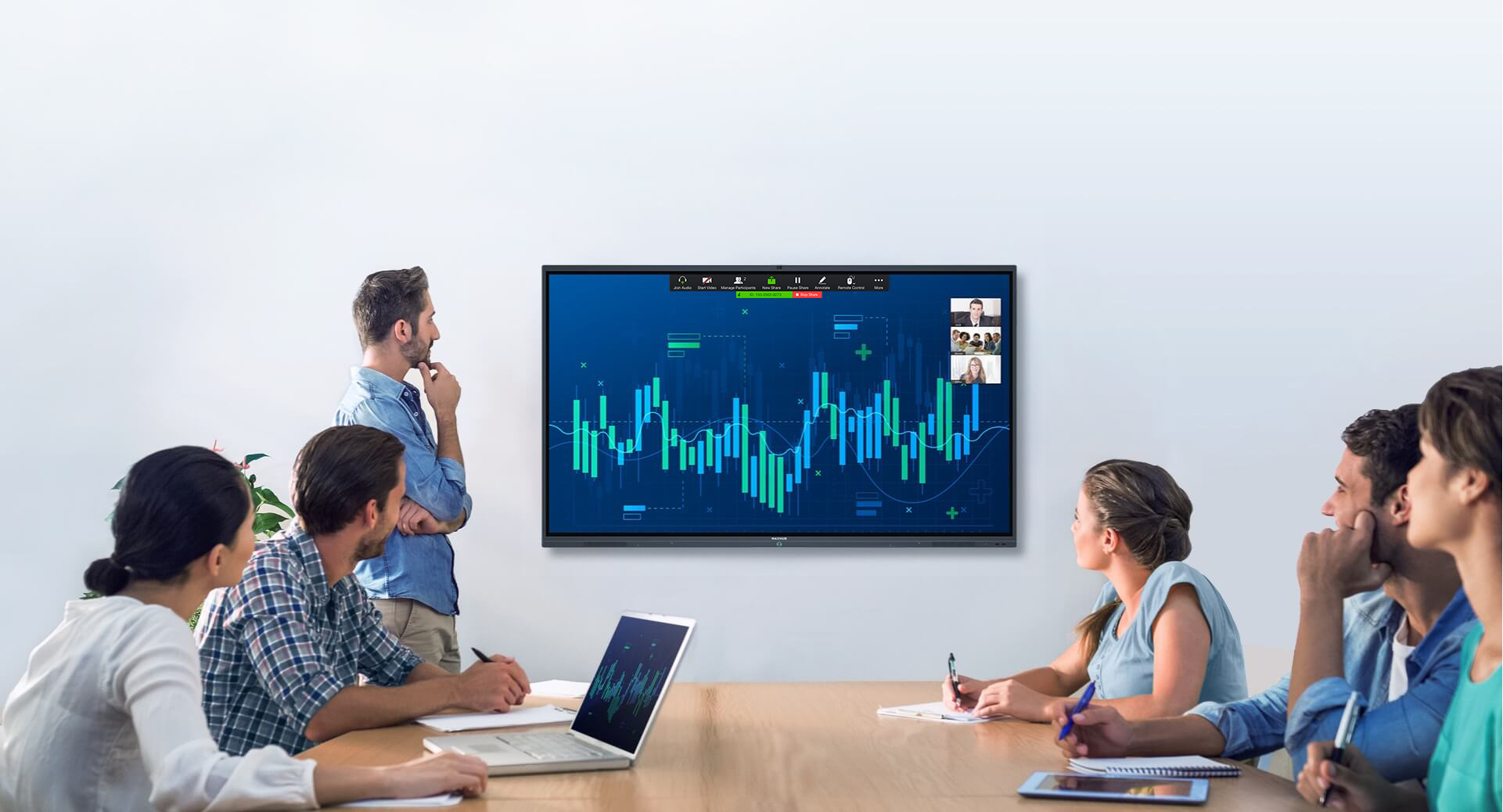

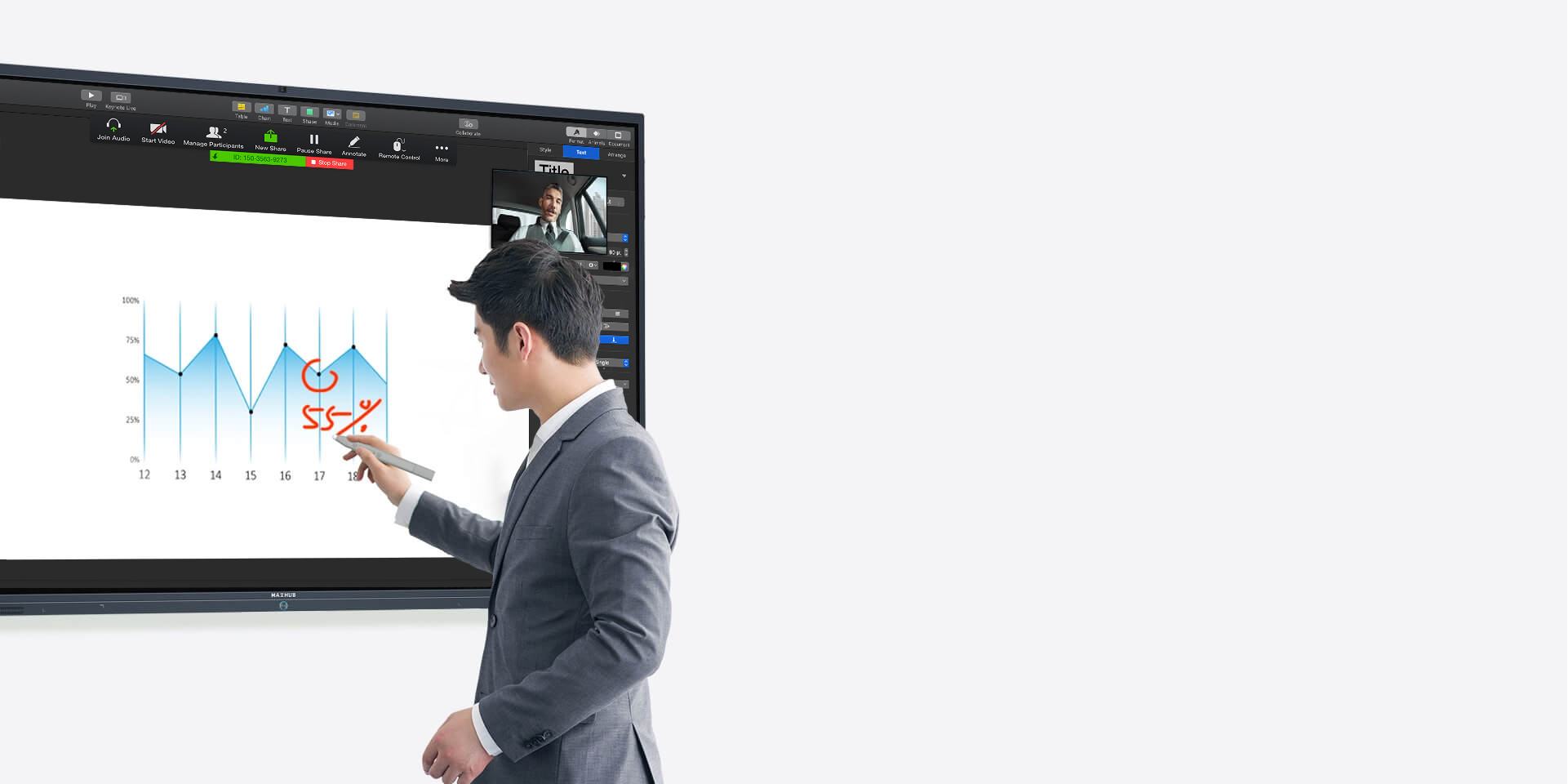

Remote collaboration
eliminates the space limitation
eliminates the space limitation

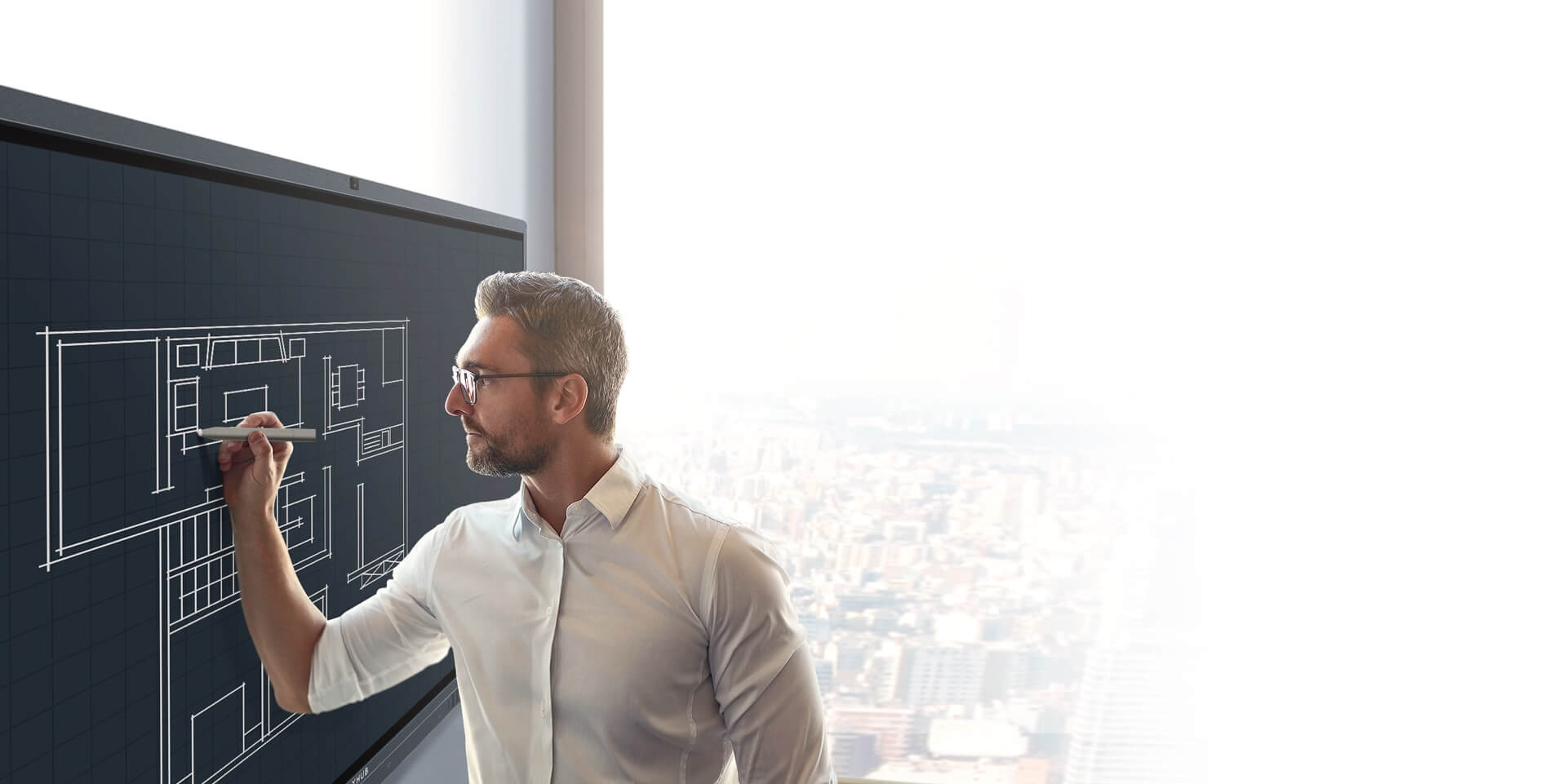

Intelligent and free writing
0.04s rapid response time* records your creativity in a flash.
1mm high touch accuracy shows you every detail.
With intelligent recognition technology,
you can erase, move, zoom in and out contents freely in an unlimited writing space.
Intelligent recognition technology supports graphic recognition*, table insertion*,
enriching your writing and presentation.
1mm high touch accuracy shows you every detail.
With intelligent recognition technology,
you can erase, move, zoom in and out contents freely in an unlimited writing space.
Intelligent recognition technology supports graphic recognition*, table insertion*,
enriching your writing and presentation.

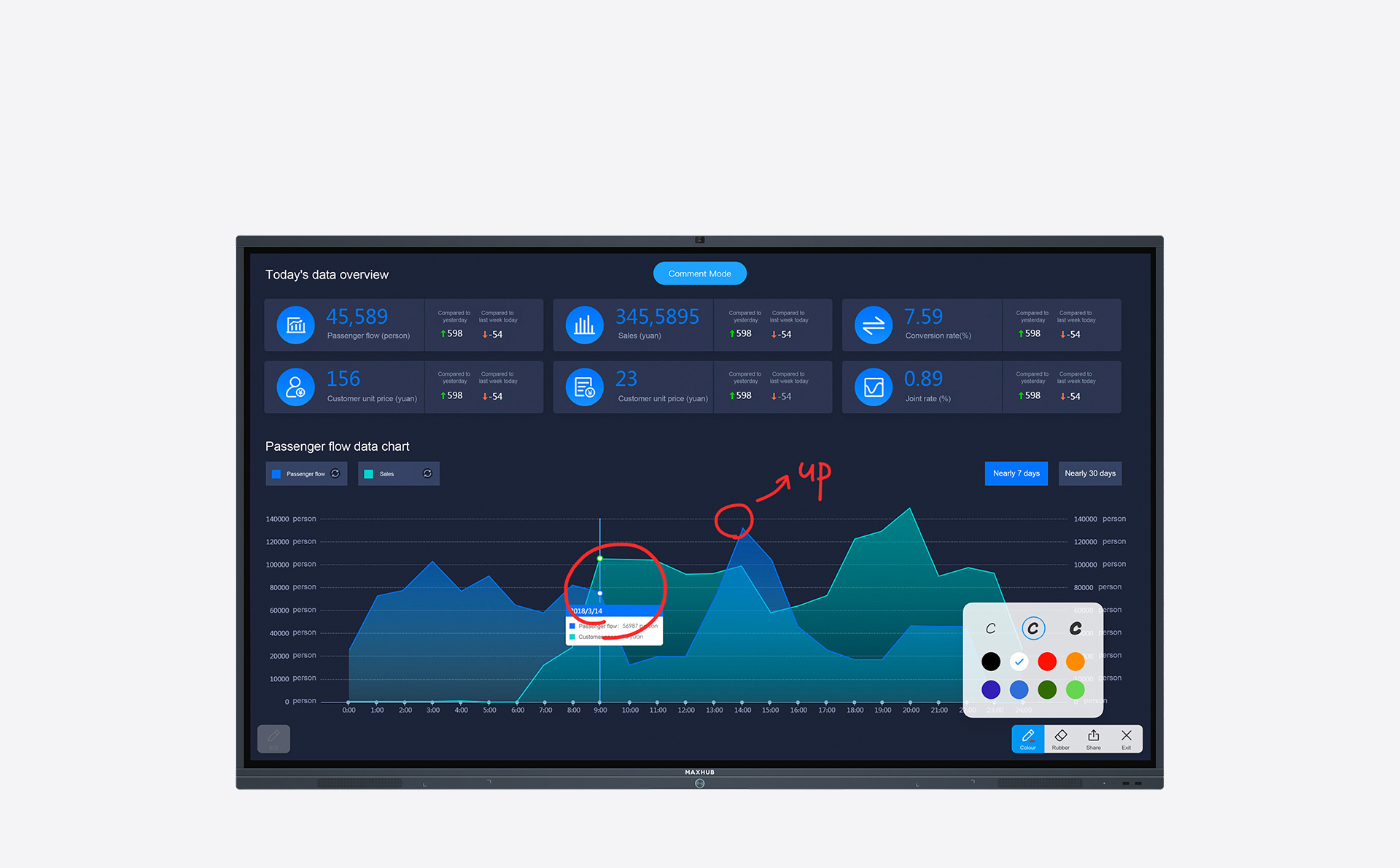

Free annotation and writing
Annotating at any interface or using the mini blackboard function to record a flash of inspiration. Annotating and saving them on PPT slides is very easy and convenient.

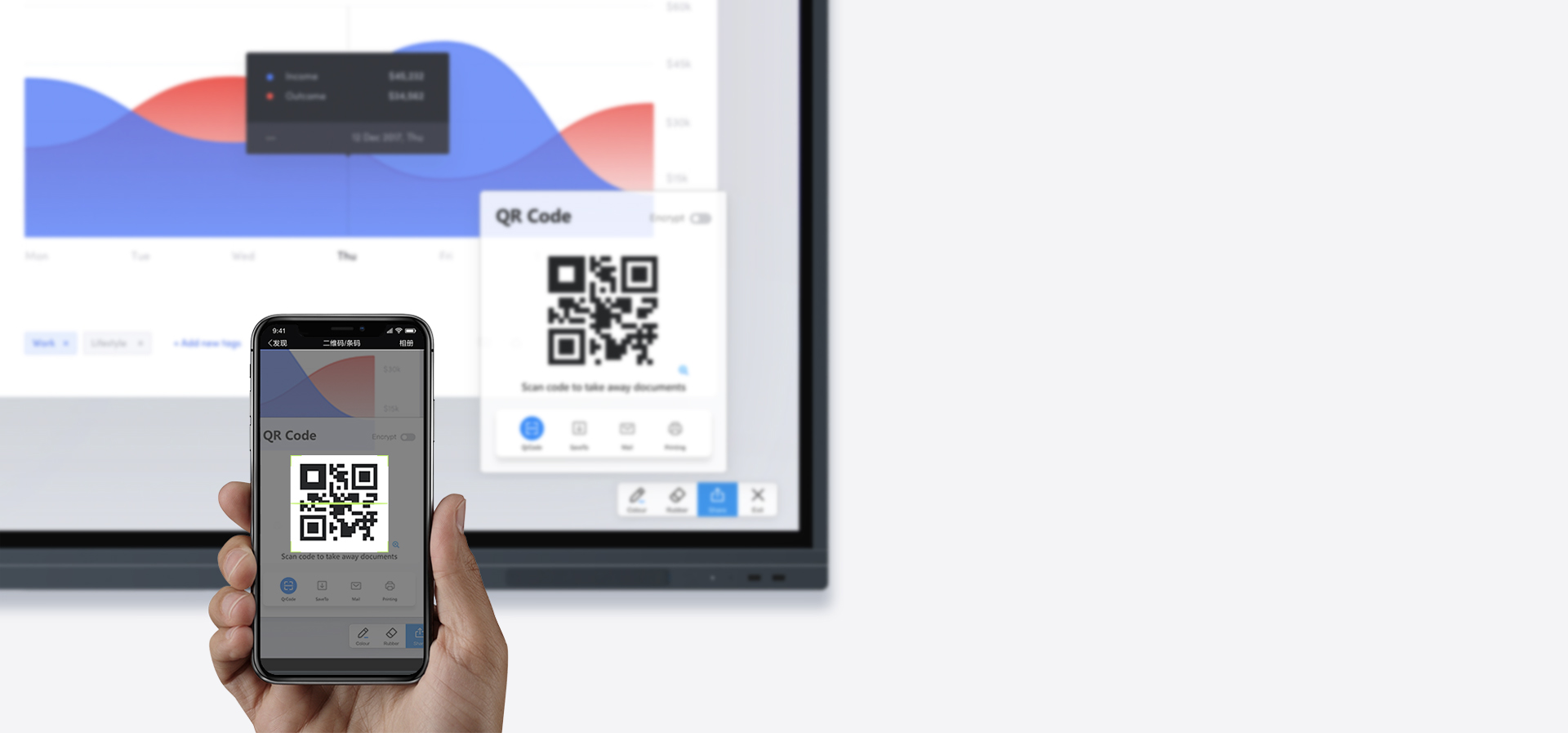

Easy saving and
sharing the meeting records
sharing the meeting records

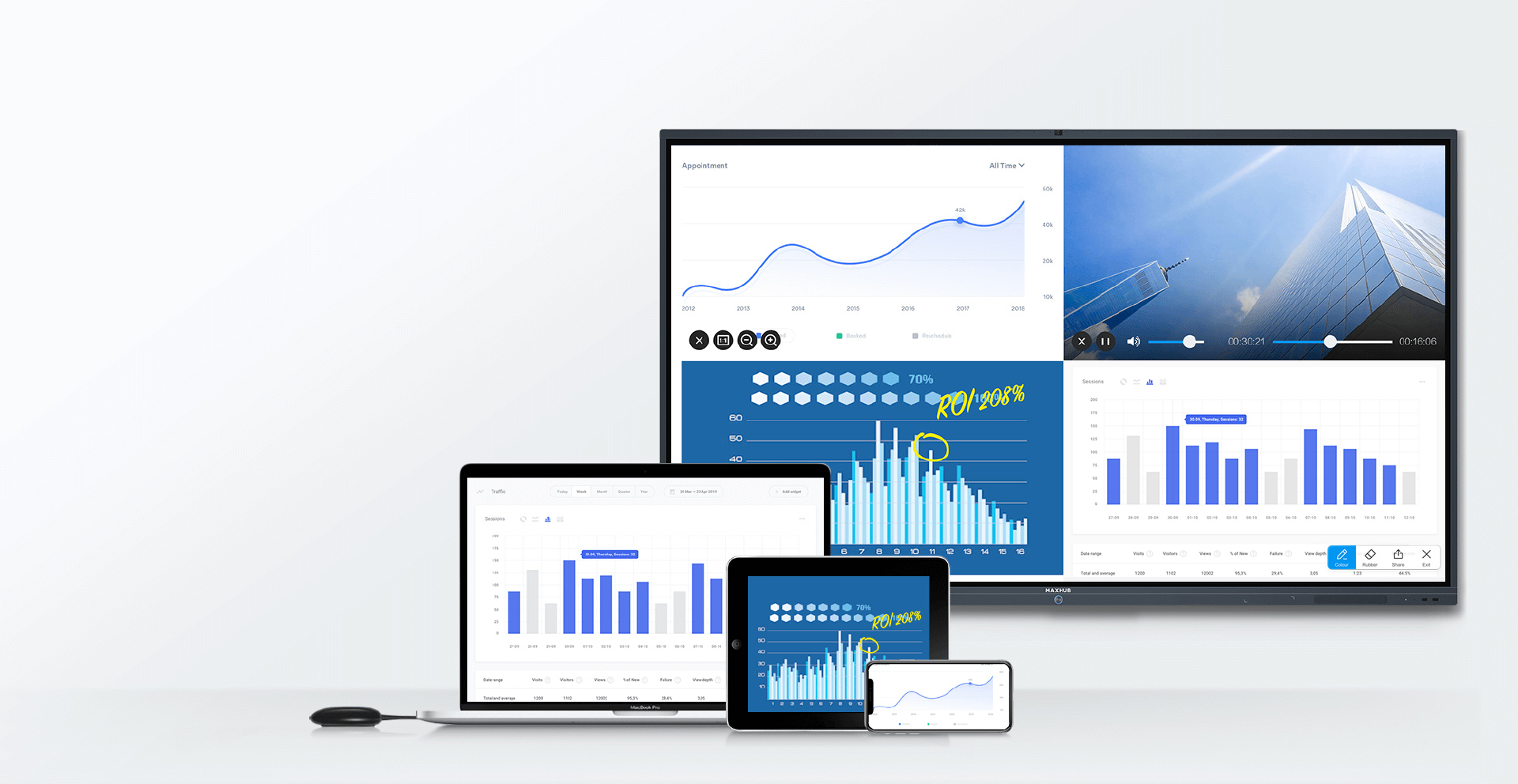

Touch and share*, mirroring can be done through mobile devices
Free multi-terminals connection* can be achieved on PC
or mobile devices with MAXHUB Wireless
Dongle and related software,
supporting up to 4 devices mirroring simultaneously
and providing you clear comparison.
or mobile devices with MAXHUB Wireless
Dongle and related software,
supporting up to 4 devices mirroring simultaneously
and providing you clear comparison.
Real time fluid and
stable mirroring
stable mirroring
0.09s transmission time* is imperceptible.
The presentation of HD documents and videos can still be sharp and fluent.
The presentation of HD documents and videos can still be sharp and fluent.

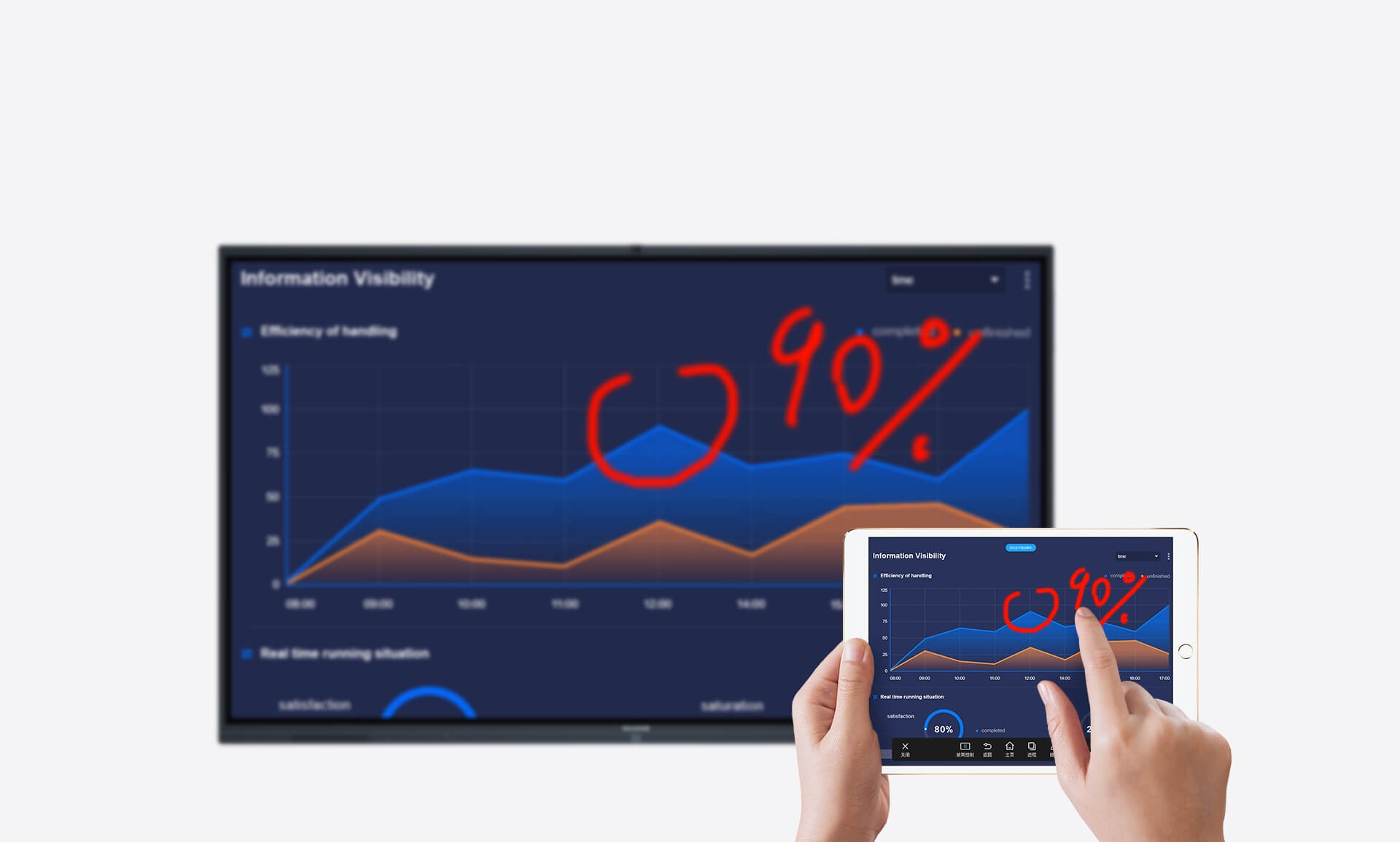

Double-directional operation creates flexible and efficient interaction

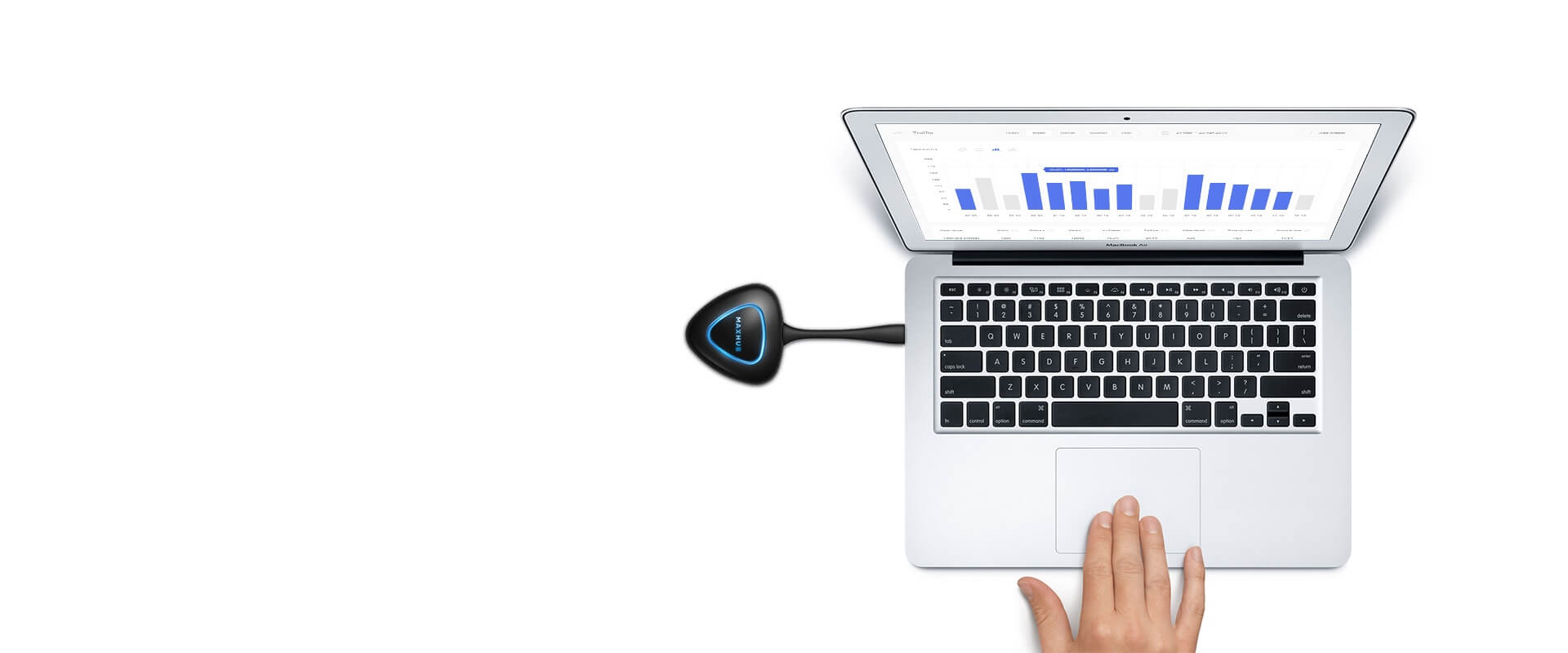

With MAXHUB Wireless Dongle, you can operate PC reversely
with MAXHUB Interactive Flat Panel, or use mobile devices directly operate MAXHUB* to write, annotate, present etc.
with MAXHUB Interactive Flat Panel, or use mobile devices directly operate MAXHUB* to write, annotate, present etc.
Get Connected with MAXHUB
