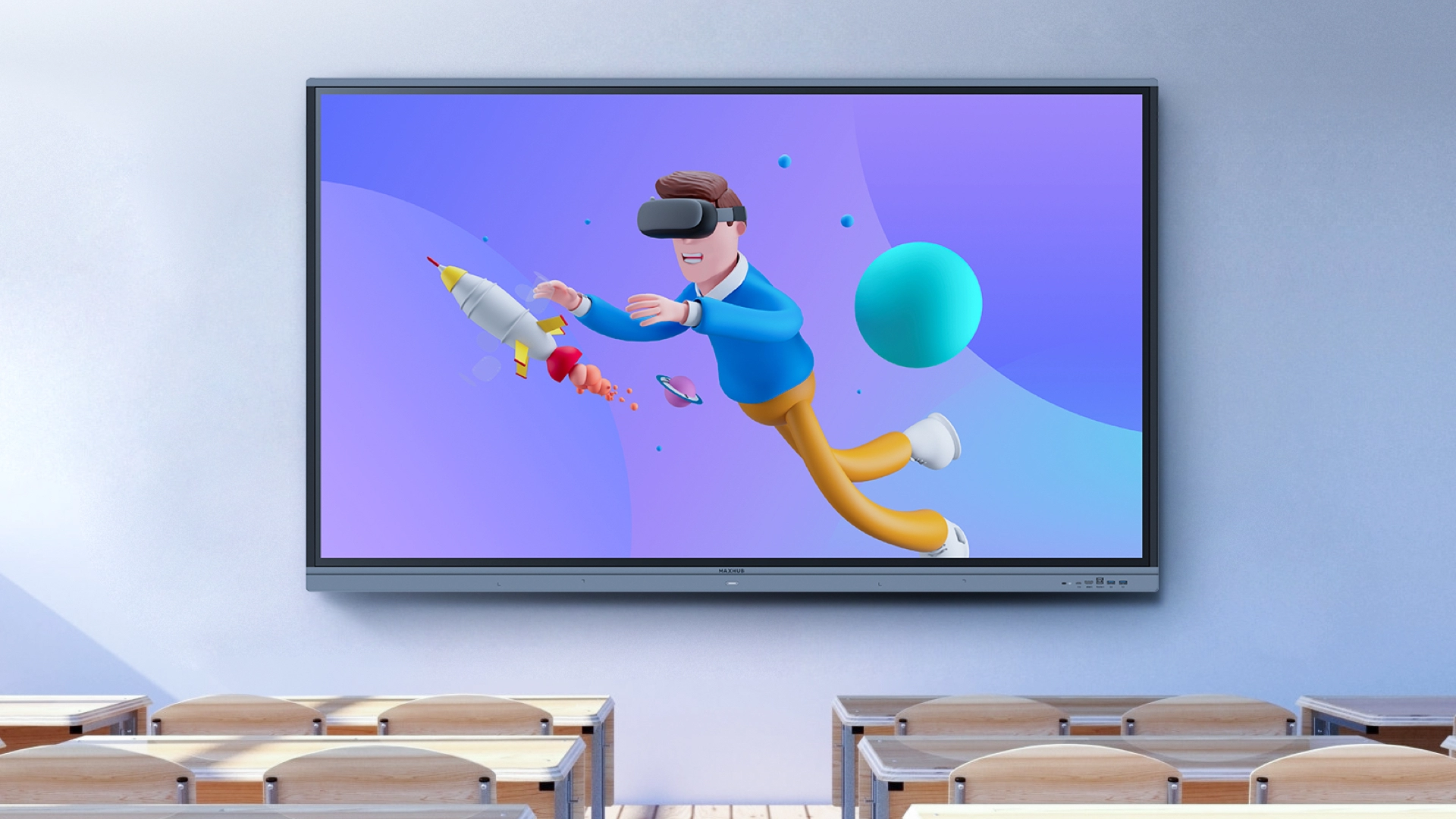

MAXHUB Interactive Flat Panel E2 Series
EXCELLENCE IN EDUCATION
Best-in-class performance comes easily with the MAXHUB Interactive Flat Panel E2 Series. Combining a pro-grade display with effortless operation and innovative safety features to protect students’ health, this classroom all-star meets the unique needs of young learners and those who teach them.

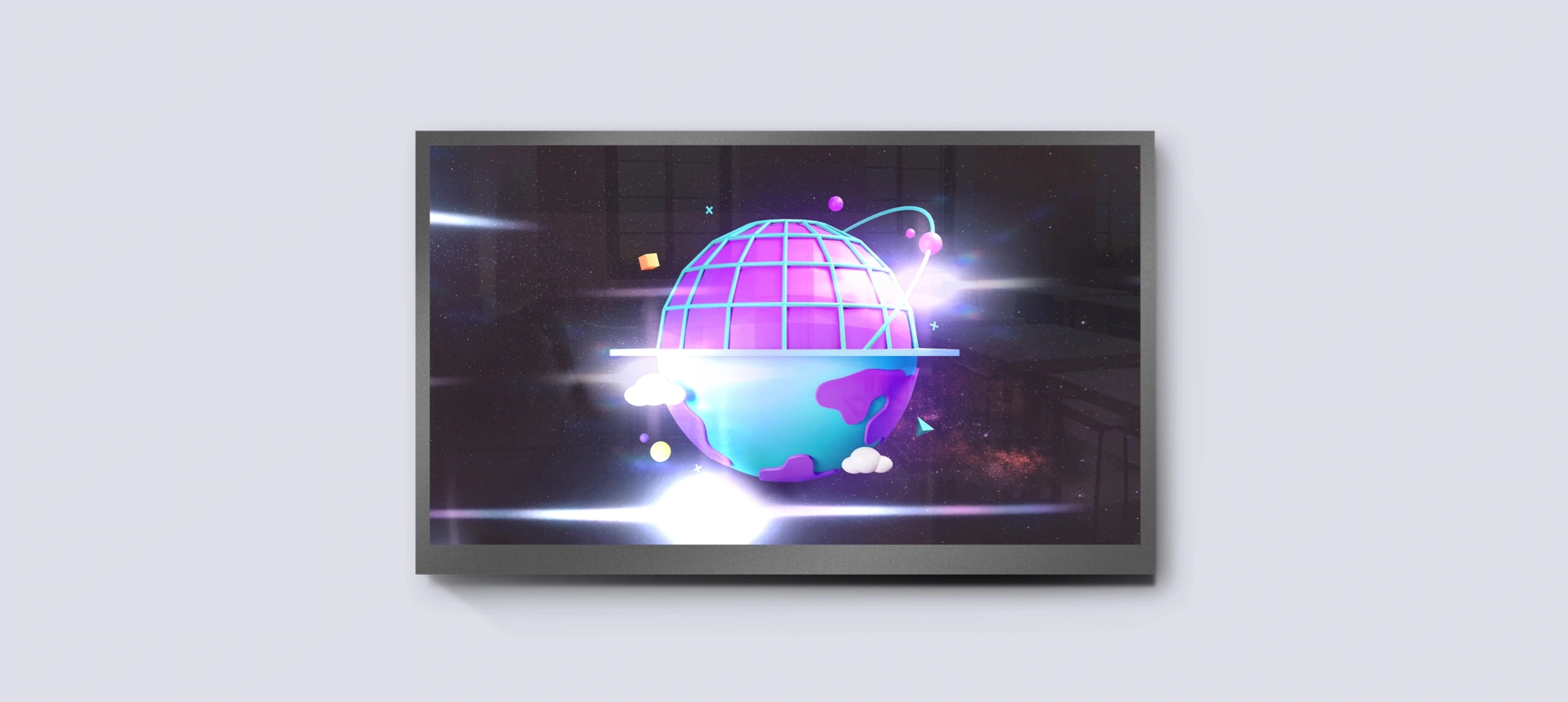

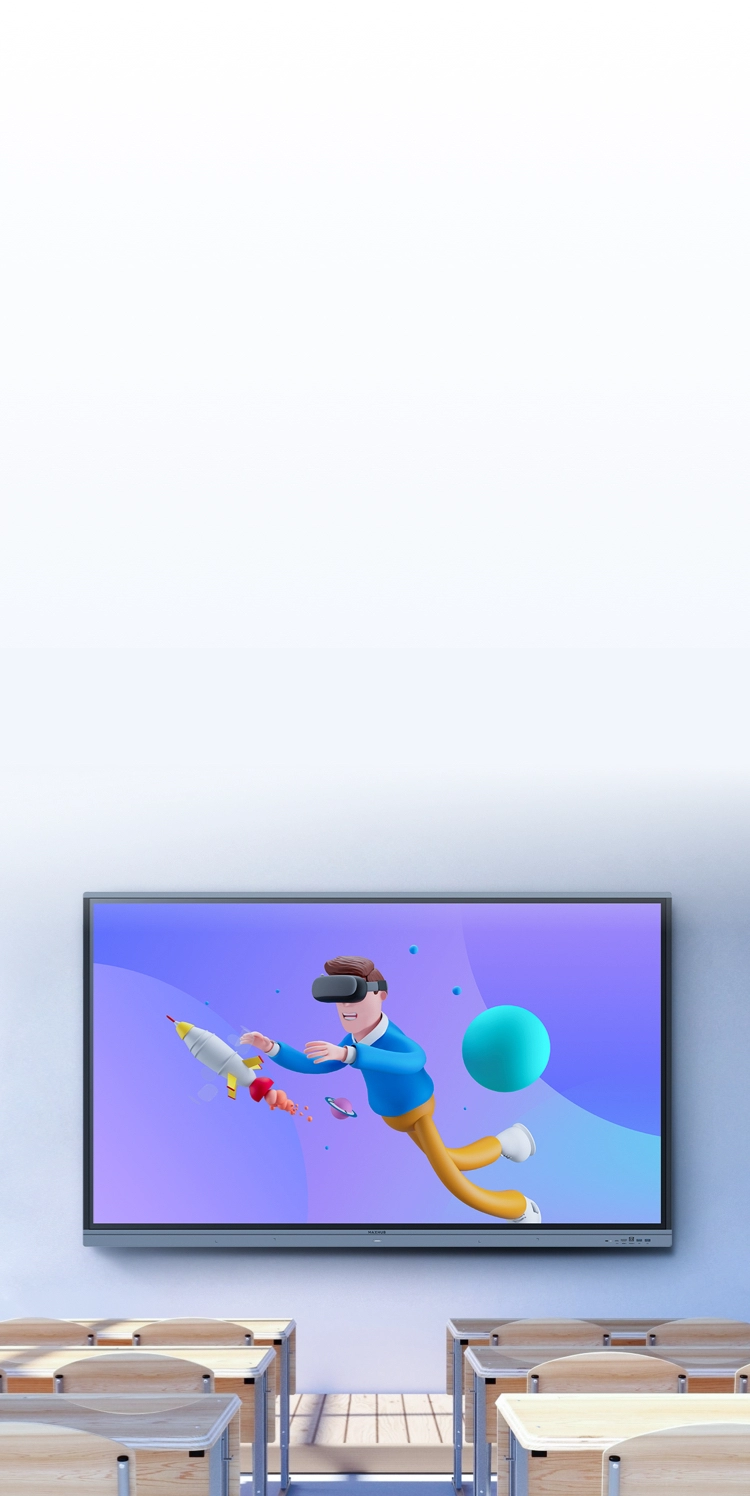

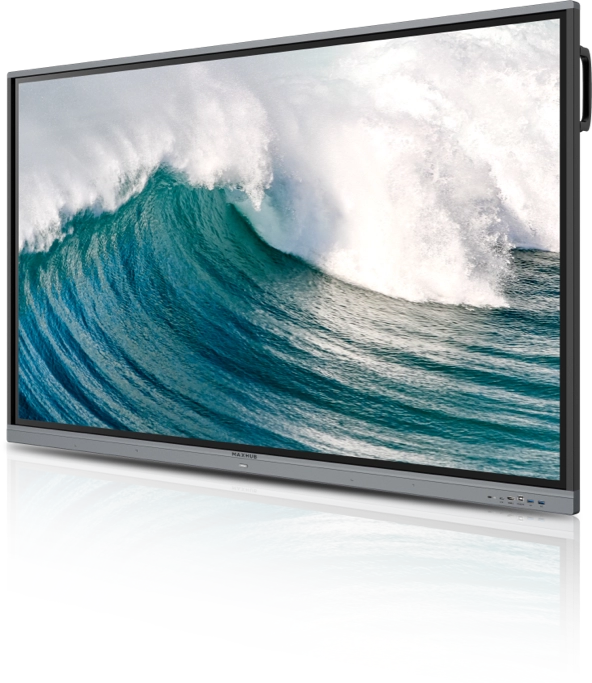

A display that focuses attention, and fuels interaction.

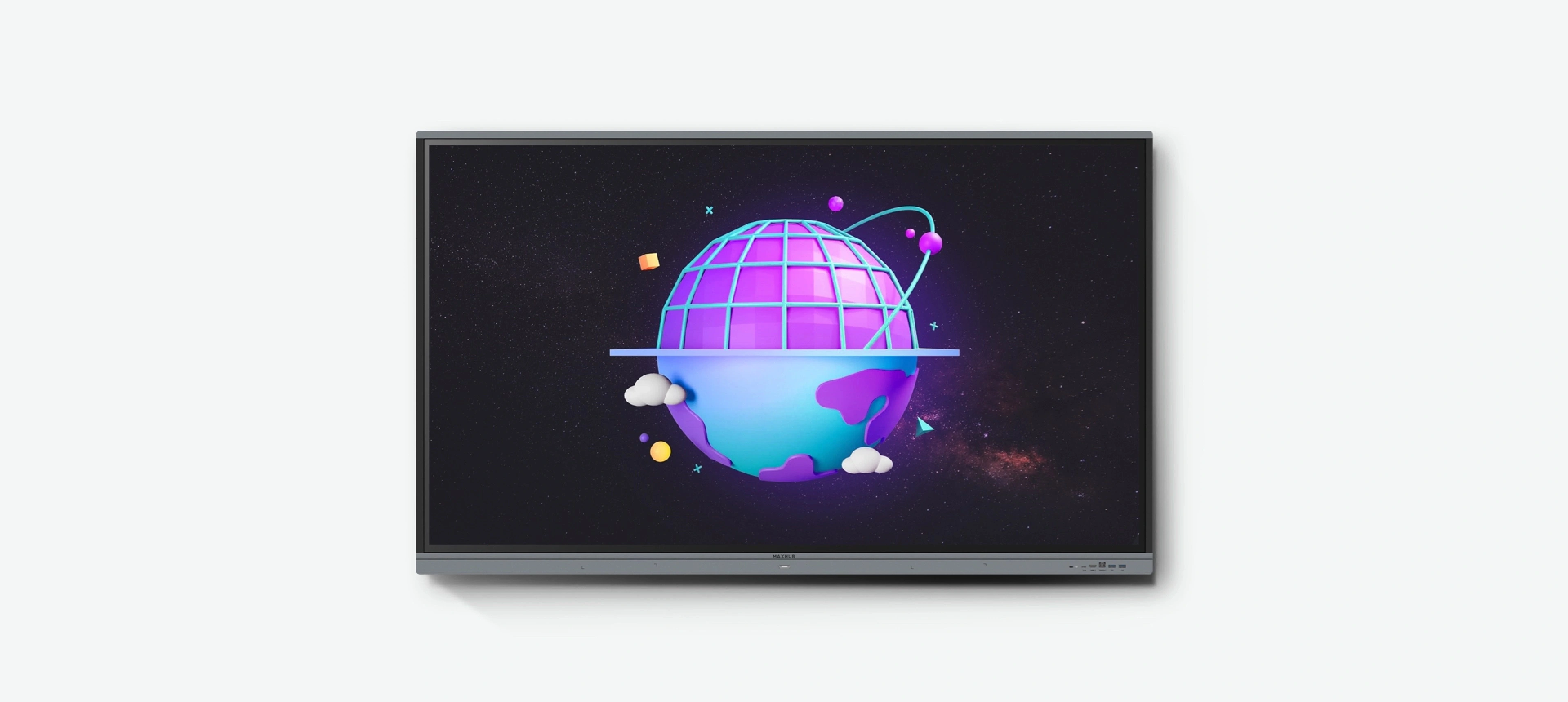

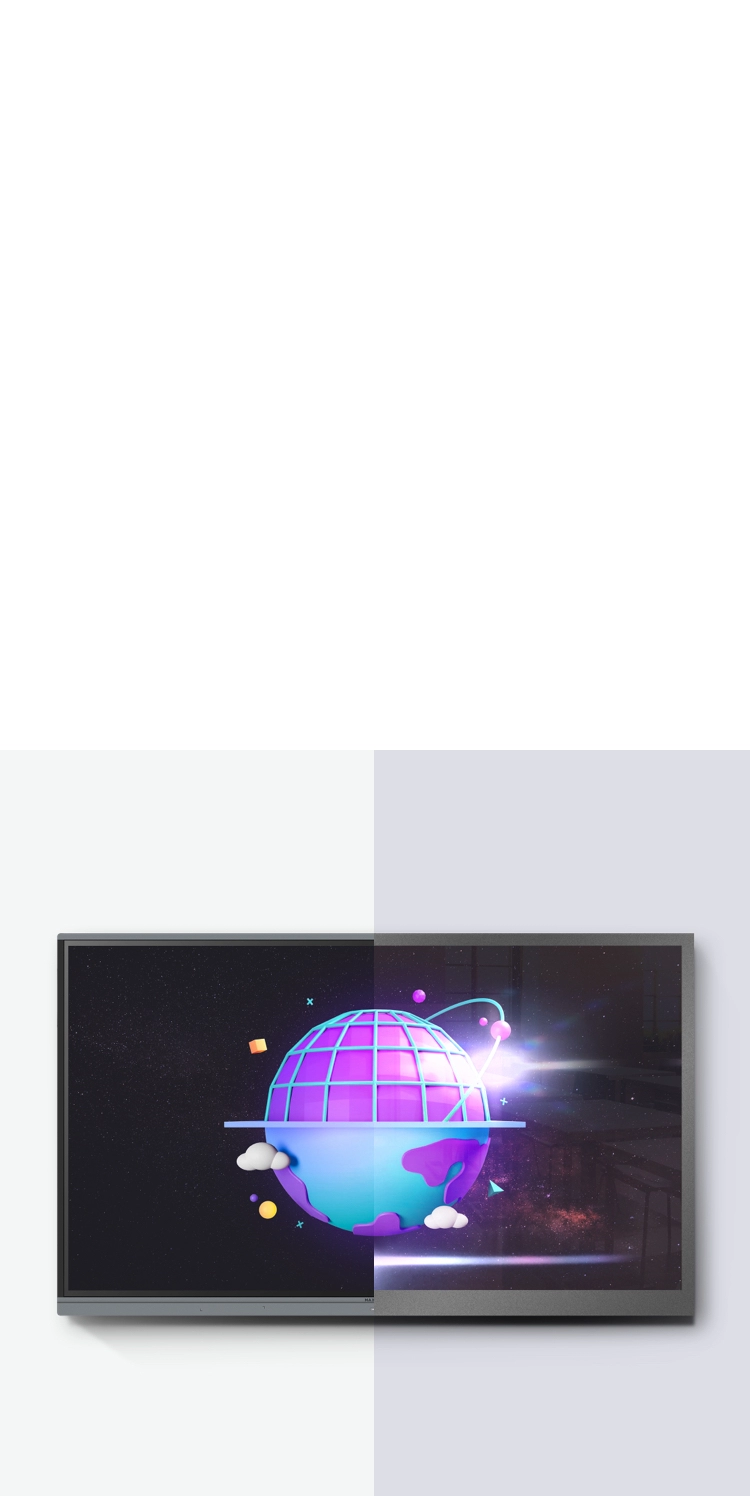

Content comes alive on the E2 Series’ 4K, high-contrast screen. Images, text and handwriting are rendered with astonishing sharpness and professional-grade color accuracy. The flicker-free screen reduces eye strain, and anti-glare glass eliminates distracting reflections.
· Flicker-free screen
· Anti-glare glass
· Color ΔE ≤ 2
· 4K resolution
Easy on the eyes.
TÜV-certified to protect eyes and preserve students’ vision, the E2 Series’ display minimizes visual fatigue by reducing blue light and reflections, eliminating flicker, and automatically adjusting brightness to adapt to the indoor environment.
· Ambient light sensor
· Eye-care mode
· TÜV Certified Low Blue Light
· TÜV Certified Flicker Free
Write naturally, right from the start.
Providing a natural writing experience with no learning curve, the E2 Series enables teachers and students alike to write easily, silently and efficiently.
· Zero Bonding technology
· Double nib design, 3mm fine nib
· Up to 40 touch points¹
· Less than 40ms writing latency

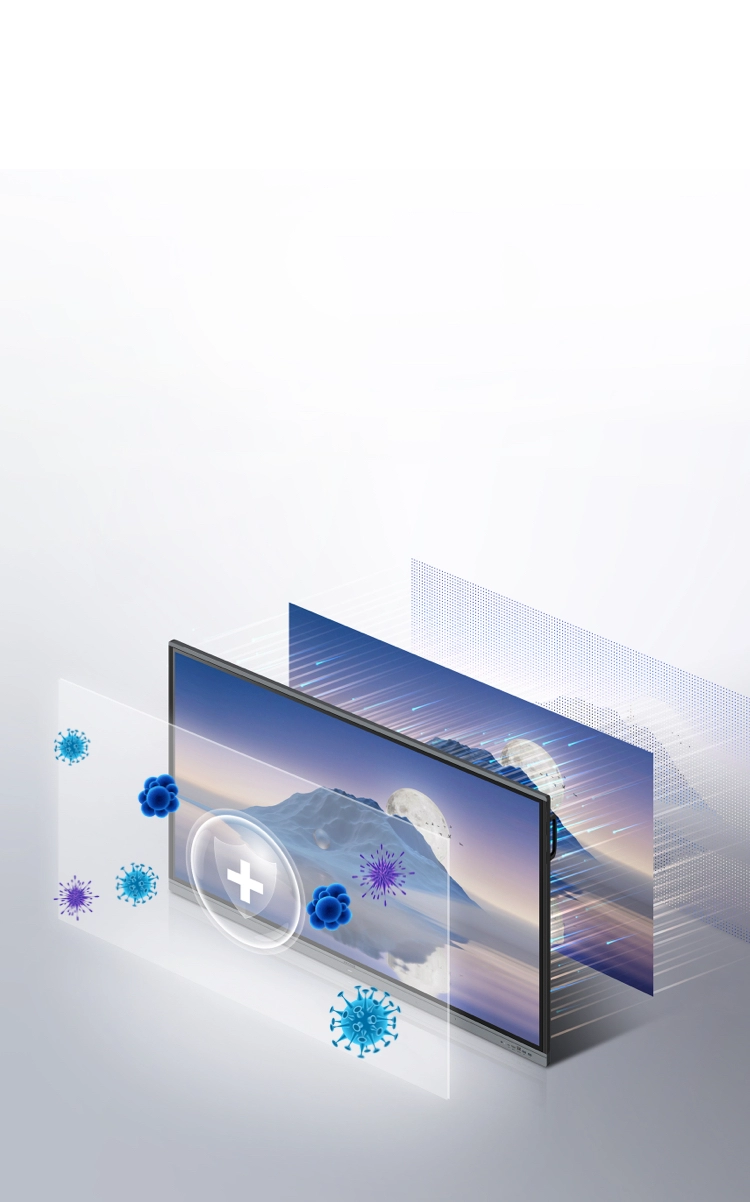

Share ideas, not germs.²

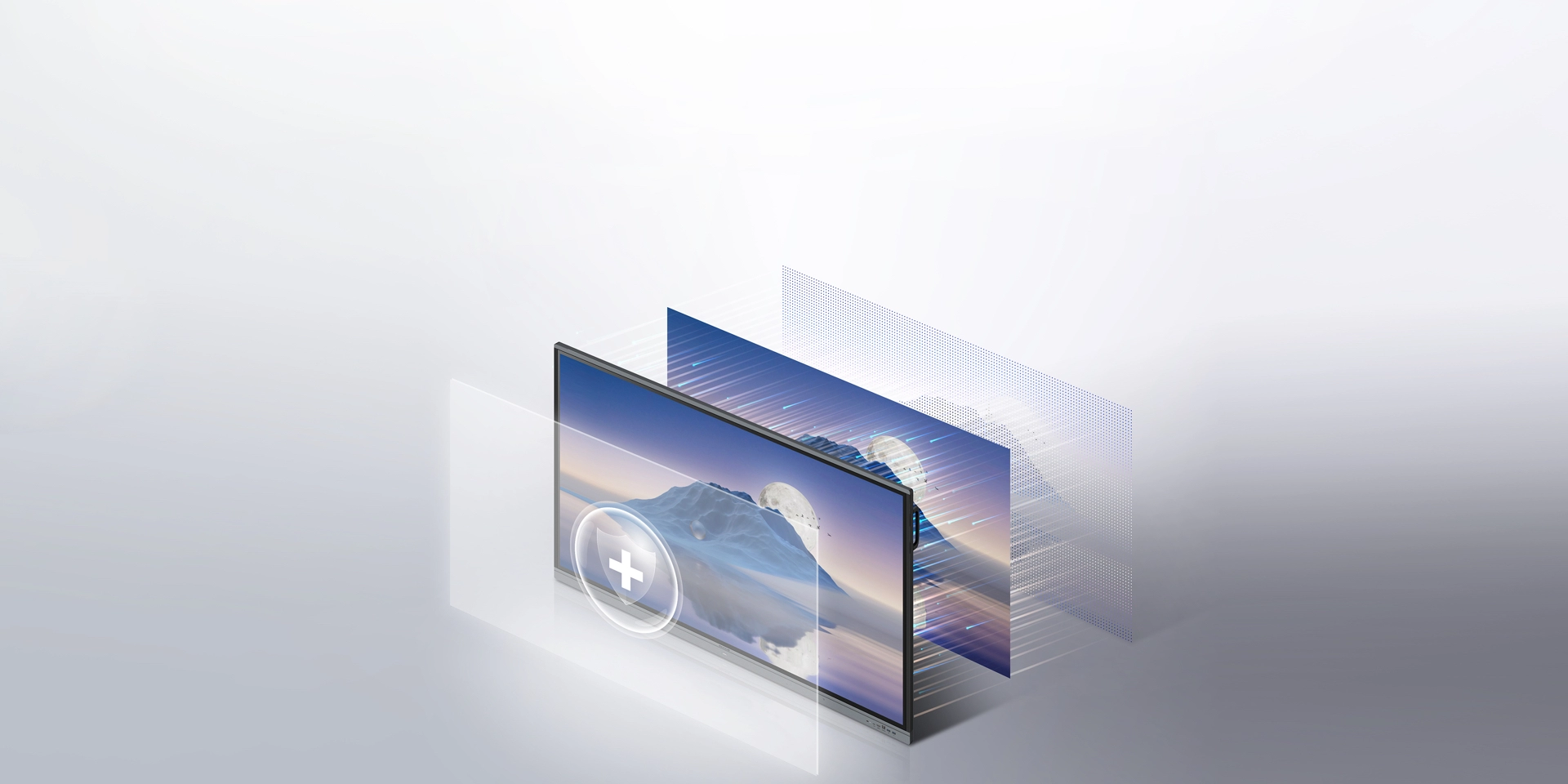

Designed to inhibit bacterial reproduction and other risks, the E2 Series features an optional antimicrobial screen, which is specially coated and manufactured with 3mm tempered glass to protect users from accidental injury.
· SGS Certified
Thinks fast, responds instantly.
Count on the E2 Series to keep pace with the rapid flow of ideas in your classroom. Powerful processing performance erases system lag. The gigabit network card speeds through data downloads.
Audio that amplifies understanding.
The high-power speaker reaches every corner of your classroom, boosting engagement and student comprehension.
· 2*12W output power
Backup with dual system.
Lose your fear of data loss. The optional one-click switch backup system provides powerful protection from software crashes.
Maximize utility with simplicity.

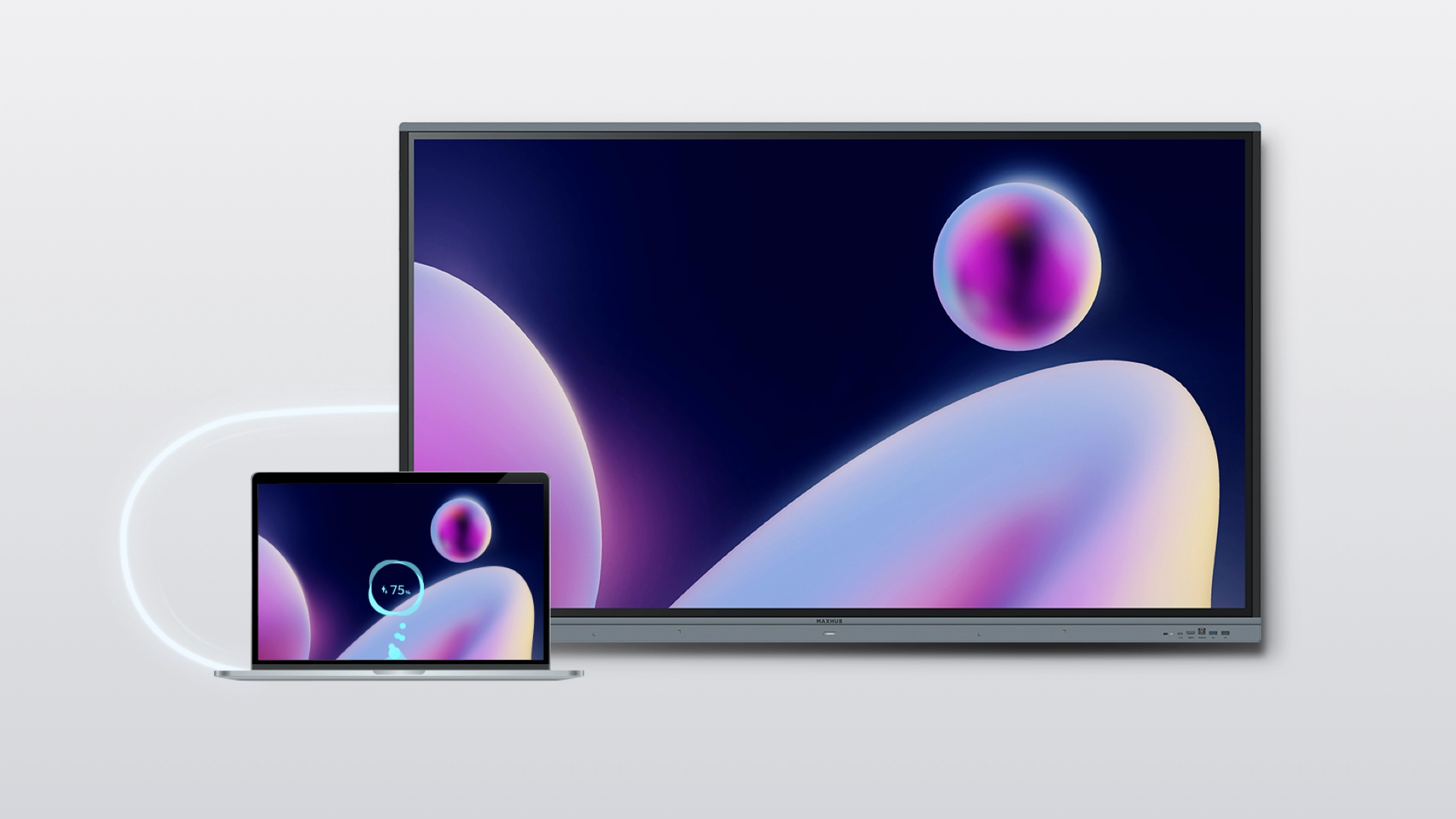

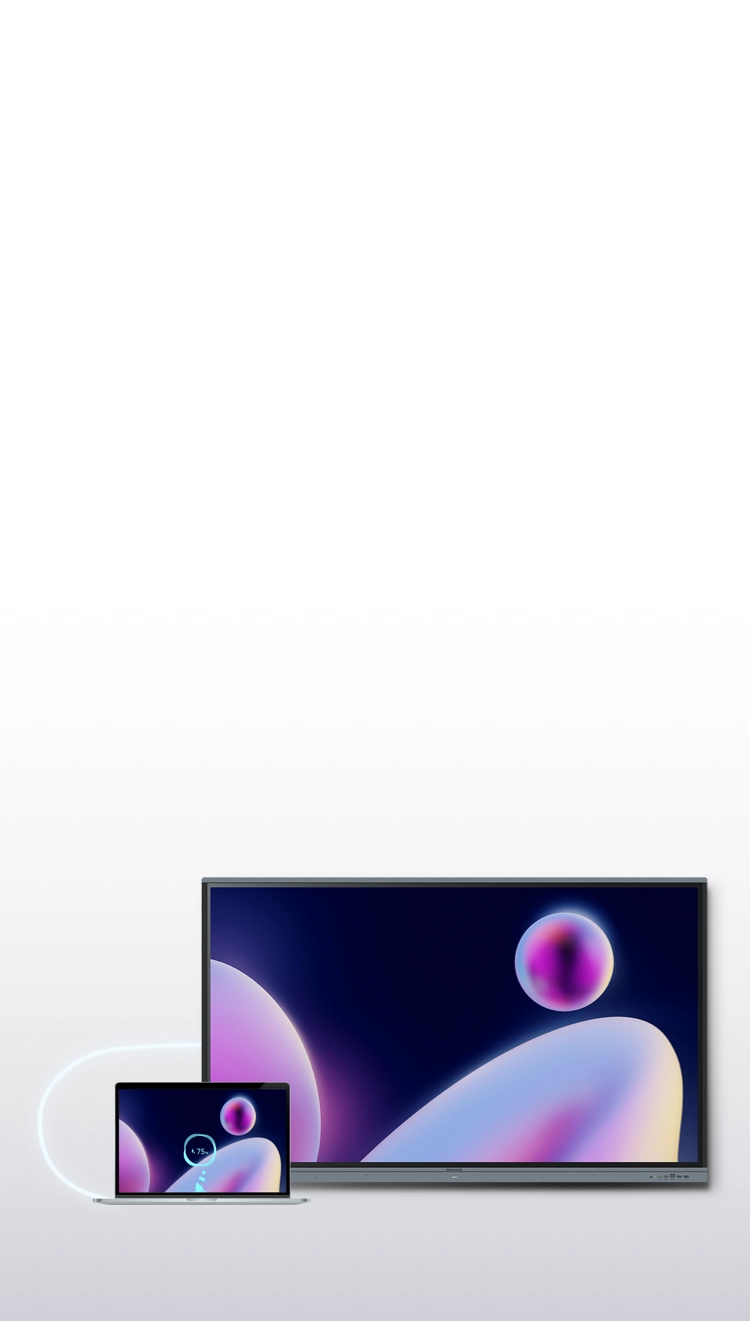

Bringing BYOD convenience and capabilities to the classroom, the E2 Series features an all-in-one Type-C interface for your mobile device.
Front Type-C interface for all-in-one video, audio, touch, network and charging transmission.
· Supports audio and display up to 4K@60fps.
· Supports charging up to 65W.
· Laptop internet access via Type-C interface on web-connected the E2 Series displays.

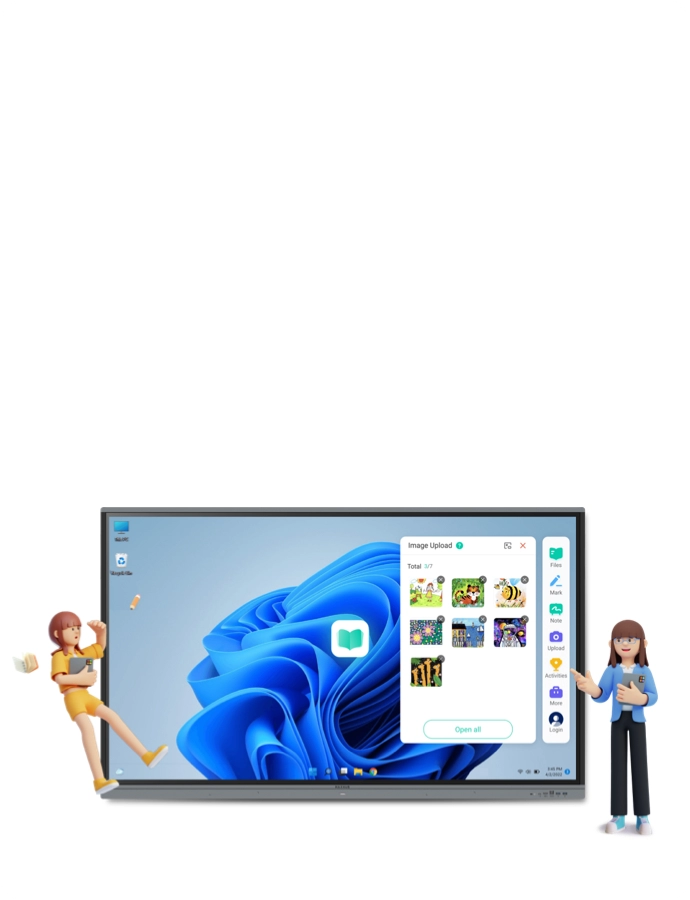

Bytello Class
Teach anytime, anywhere.
Cloud-based lesson preparation lets teachers access and share lesson plans with one another anytime, anywhere.

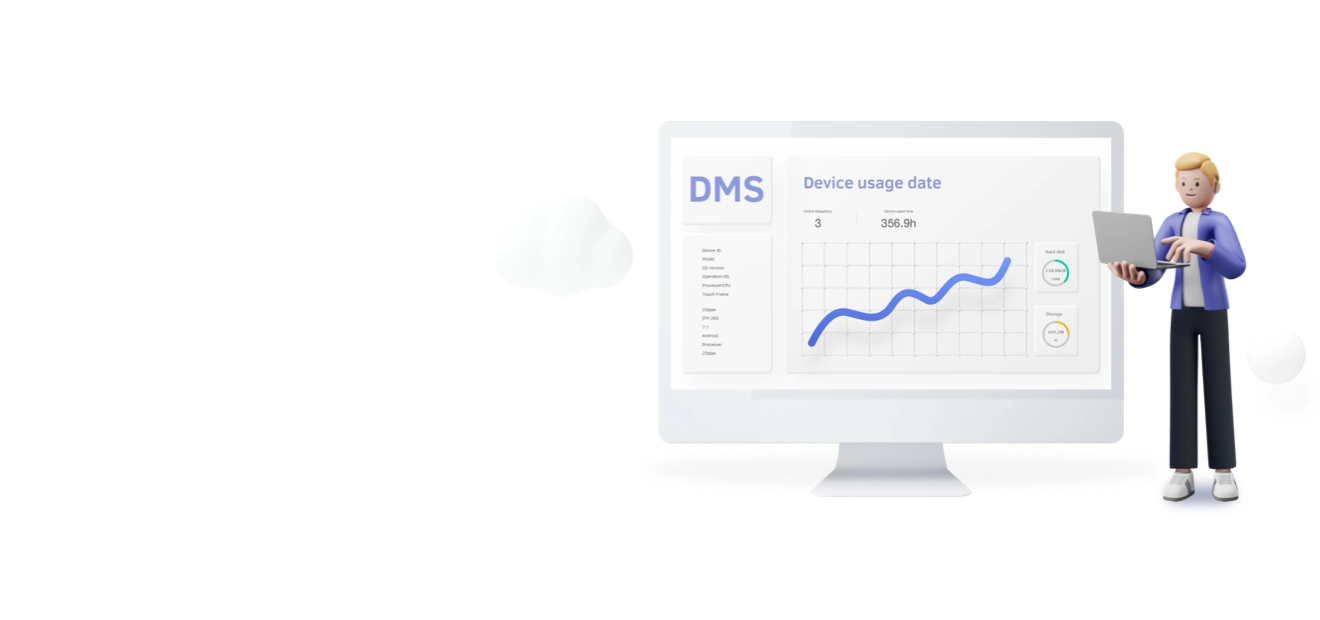

Bytello DMS
The classroom companion for IT teams.
Bytello DMS makes it easy to set up program operation schedules to automate and simplify IT operations. IT team can also monitor the usage status of equipment and access data for continuous optimization and reporting.

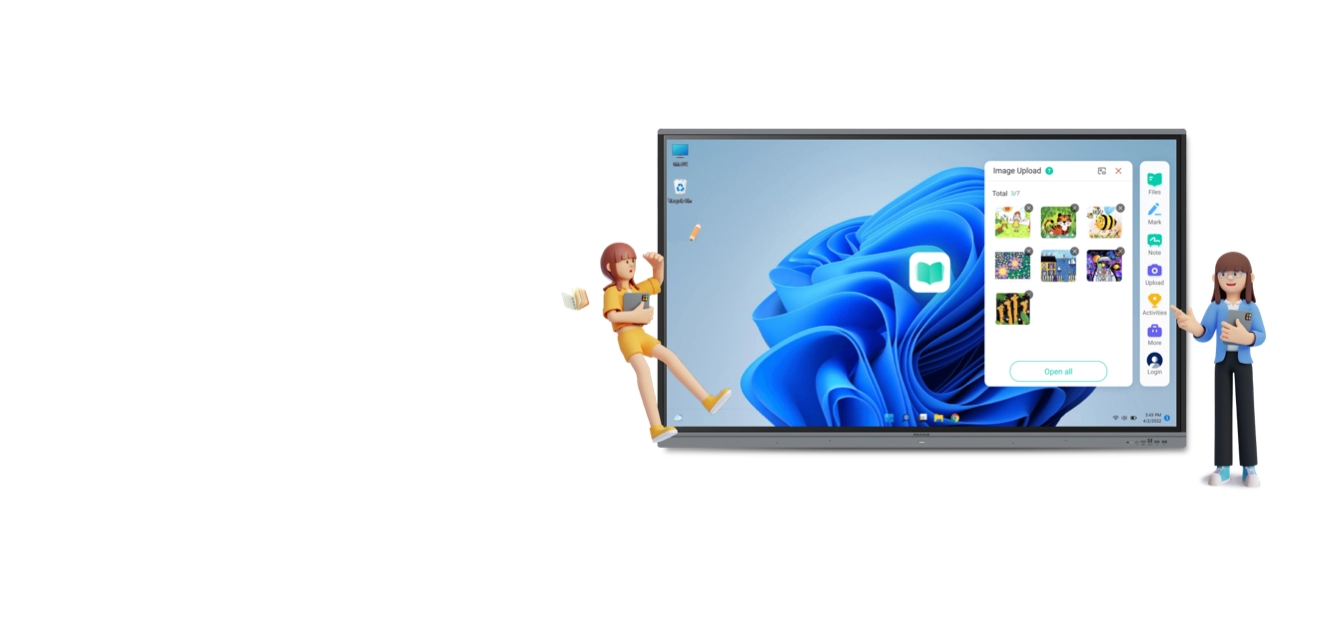

Bytello OS
The ultimate teacher’s aides.
Customize the system homepage and easily access personal account in the exclusive teacher space within Bytello OS.

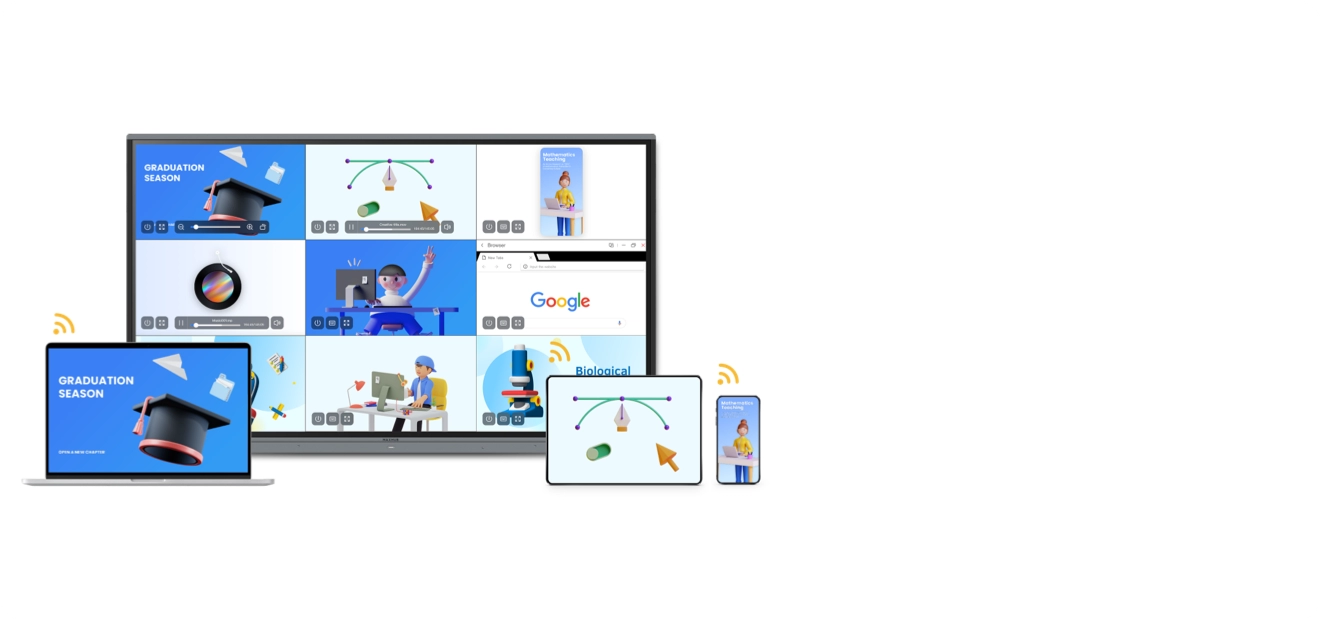

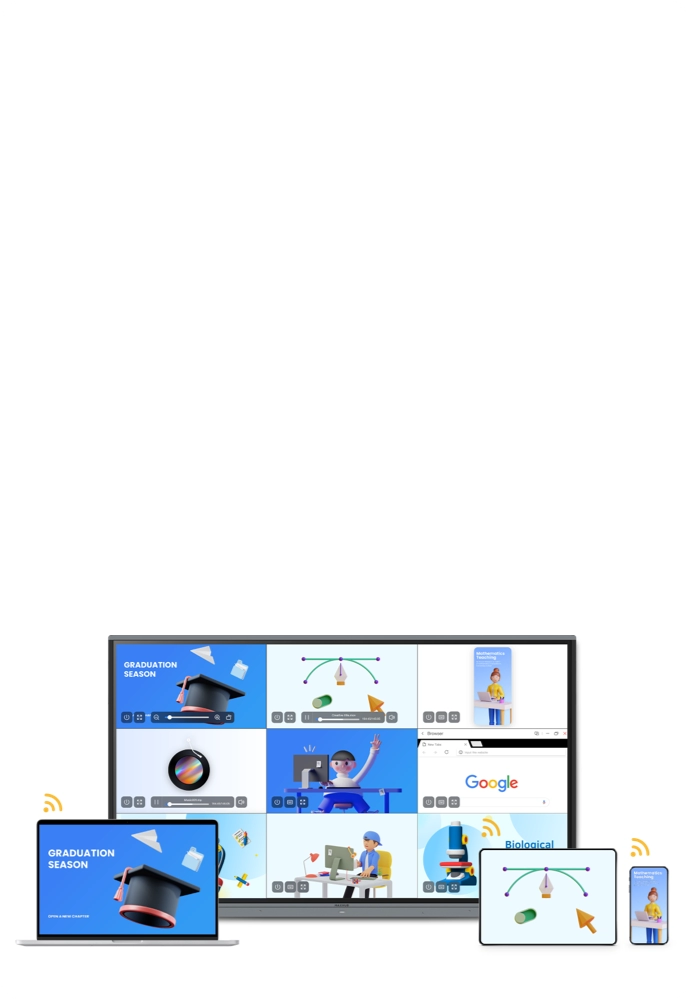

Bytello Share
Teach your students via Bytello Share.
Secure two-way screen sharing on the E2 Series for up to 9 students simultaneously while compatible with all major screen-sharing protocols, including Miracast, Airplay and Chromecast.
E6520
E7520
E8620
Model
E6520
E7520
E8620
Display
Diagonal Size（inch）
65
75
86
Glass
Anti-glare, Tempered
Anti-glare, Tempered
Anti-glare, Tempered
Bonding
Zero parallax
Zero parallax
Zero parallax
Viewing Angle
178°(H/V)
178°(H/V)
178°(H/V)
Aspect Ratio
16:9
16:9
16:9
Blacklight
DLED
DLED
DLED
Resolution
3840 × 2160
3840 × 2160
3840 × 2160
Contrast Ratio
1200:1
1200:1
4000:1
Color Depth
1.07B(10bit)
1.07B(10bit)
1.07B(10bit)
Color Gamut（typ.）
72% NTSC
72% NTSC
72% NTSC
Color Accuracy
Delta E ≤ 2
Delta E ≤ 2
Delta E ≤ 2
Refresh Rate
60Hz
60Hz
60Hz
Response time
8ms
8ms
8ms
Brightness（typ.）
350cd/m²
350cd/m²
350cd/m²
Interactivity
Touch Sensor
Infrared（IR）
Infrared（IR）
Infrared（IR）
Touch Tool
Finger,Gesture,Stylus
Finger,Gesture,Stylus
Finger,Gesture,Stylus
Multitouch Capabilities
Up to 40 touch points（OS dependent）
Up to 40 touch points（OS dependent）
Up to 40 touch points（OS dependent）
Response Time
≤ 10ms
≤ 10ms
≤ 10ms
Touch Accuracy
±1.5mm
±1.5mm
±1.5mm
Object Recognition Range
≥ 3mm
≥ 3mm
≥ 3mm
Stylus Type
Passive dual nibs
Passive dual nibs
Passive dual nibs
Supported Operating System
(Touch Return)
Windows10 / Windows8 / Windows7 / WindowsXP / Android / Linux / Mac OS X / Chrome OS
Windows10 / Windows8 / Windows7 / WindowsXP / Android / Linux / Mac OS X / Chrome OS
Windows10 / Windows8 / Windows7 / WindowsXP / Android / Linux / Mac OS X / Chrome OS
Built-in System
Operating System
Android 11.0
Android 11.0
Android 11.0
RAM
4GB
4GB
4GB
ROM
32GB
32GB
32GB
CPU
2.0GHz quad core ARM A55
2.0GHz quad core ARM A55
2.0GHz quad core ARM A55
GPU
Mali-G52 MP2
Mali-G52 MP2
Mali-G52 MP2
Software
Screen Share
Yes
Yes
Yes
DMS
Yes
Yes
Yes
On Board Apps
Browser, Cloud Drive, System Keeper, Note, Palette, Annotate, Timer, Screen Record, Split Screen, etc.
Browser, Cloud Drive, System Keeper, Note, Palette, Annotate, Timer, Screen Record, Split Screen, etc.
Browser, Cloud Drive, System Keeper, Note, Palette, Annotate, Timer, Screen Record, Split Screen, etc.
Power
Power Supply
AC 100~240V 50/60Hz
AC 100~240V 50/60Hz
AC 100~240V 50/60Hz
Power Consumption（standby）
≤ 0.5W
≤ 0.5W
≤ 0.5W
Power Consumption（maximum）
400W（including OPS）
400W（including OPS）
500W（including OPS）
Speaker
Sound Channel
2.0
2.0
2.0
Power Output
2 × 12w
2 × 12w
2 × 12w
Connectivity
OPS Slot
Yes, 3840 × 2160 @ 60fps
Yes, 3840 × 2160 @ 60fps
Yes, 3840 × 2160 @ 60fps
OPS Compatible
OPS62A
OPS62A
OPS62A
Wired
1000baseT RJ45 × 2
1000baseT RJ45 × 2
1000baseT RJ45 × 2
Wi-Fi
2.4Ghz, 5Ghz band
802.11ac/b/g/n/a/ax
2.4Ghz, 5Ghz band
802.11ac/b/g/n/a/ax
2.4Ghz, 5Ghz band
802.11ac/b/g/n/a/ax
HDMI
HDMI 2.0 In × 3
HDMI Out × 1（Up to 4K @ 60fps）
HDMI 2.0 In × 3
HDMI Out × 1（Up to 4K @ 60fps）
HDMI 2.0 In × 3
HDMI Out × 1（Up to 4K @ 60fps）
Touch
USB Type-B × 2
USB Type-B × 2
USB Type-B × 2
Control
RS-232 × 1
RS-232 × 1
RS-232 × 1
Analog
VGA In × 1
VGA In × 1
VGA In × 1
Audio
Audio In × 1
Audio Out × 1
S/PDIF Out × 1
Audio In × 1
Audio Out × 1
S/PDIF Out × 1
Audio In × 1
Audio Out × 1
S/PDIF Out × 1
USB Type-A
USB 3.0 × 4
USB 2.0 × 1
USB 3.0 × 4
USB 2.0 × 1
USB 3.0 × 4
USB 2.0 × 1
Multifunction Port
USB Type-C × 1
USB Type-C × 1
USB Type-C × 1
Accessory
3m Power Cord
× 1
× 1
× 1
1.4m HDMI Cable
× 1
× 1
× 1
5m USB Touch Cable（Type A-B）
× 1
× 1
× 1
1.8m USB Type-C Cable
× 1
× 1
× 1
Remote Control
× 1
× 1
× 1
Wall Mount
× 1
× 1
× 1
Stylus
× 2
× 2
× 2
Wireless Adapter
× 1
× 1
× 1
Physical Specification
Dimension（W × H × D）
1488.1 × 896.3 × 88.3mm
1709.1 × 1019.9 × 87.6mm
1956.7 × 1159.7 × 99.6mm
Shipping Dimension（W × H × D）
1628 × 1024 × 208mm
1863 × 1140 × 225mm
2110 × 1283 × 225mm
VESA
600 × 400mm, M8 × 25mm
800 × 400mm, M8 × 25mm
800 × 600mm, M8 × 25mm
Net Weight
35.50 Kg
47.90 Kg
60.10 Kg
Gross Weight
45.80 Kg
61.65 Kg
77.00 Kg
Environment
Operating Temperature
0℃-40℃
0℃-40℃
0℃-40℃
Storage Temperature
-20℃-60℃
-20℃-60℃
-20℃-60℃
Operating Humidity
10%-90% RH
10%-90% RH
10%-90% RH
Storage Humidity
10%-90% RH
10%-90% RH
10%-90% RH
Certificate
TüV Rheinland Flicker Free
Yes
Yes
Yes
TüV Rheinland Low Blue Light
Yes
Yes
Yes
SGS Antibacterial⁴
Stylus, Power Button
Protection Glass（optional）
Stylus, Power Button
Protection Glass（optional）
Stylus, Power Button
Protection Glass（optional）
1. OS dependent.
2. Optional antimicrobial display.
3. Microsoft Windows system is supported on optional OPS module.
4. refer to escherichia coli, staphylococcus aureus.
