MAXHUB 92“ COMMERCIAL DISPLAY ULTRA-WIDE SERIES

Ultra Immersive Vision

BIGGER SPACE FOR BIGGER IMPRESSIONS

Ultra-wide, ultra-unique aspect ratio with 33% more visual canvas than comparable models.
mask
pic
pic
pic
pic
pic
pic
wifi percent
*Only available for scrensharing.

PROFESSIONAL 5K DISPLAY

Keep an eye on all the details with a striking 5K-resolution display.
pic
pic
icon
5K DISPLAY
NORMAL
DISPLAY
icon
Carefully engineered to optimize each pixel, 5K clarity illuminates the softest hue and the most delicate detail.
icon
Panoramically wide viewing angle lights up every corner of the room. No blind spots, just pure visibility.
icon
A professional, commercial-grade anti-dust, anti-reflective coating insures long-lasting durability.
pic
icon

TYPE-C VERSATILITY

Interchange ideas, power up productivity and share more content with the multi-functional Type-C port.
pic

DEPENDABLE CHOICE
FOR COMMERCIAL APPLICATIONS

Trust in the dependable choice that provides consistent and stable 24/7 performance
icon
Portrait/Landscape Mode

SIGNATURE
MICROSOFT TEAMS
ROOMS

Tailor-made for a more immersive and cohesive Microsoft Teams experience.
pic

HYBRID
WORKING

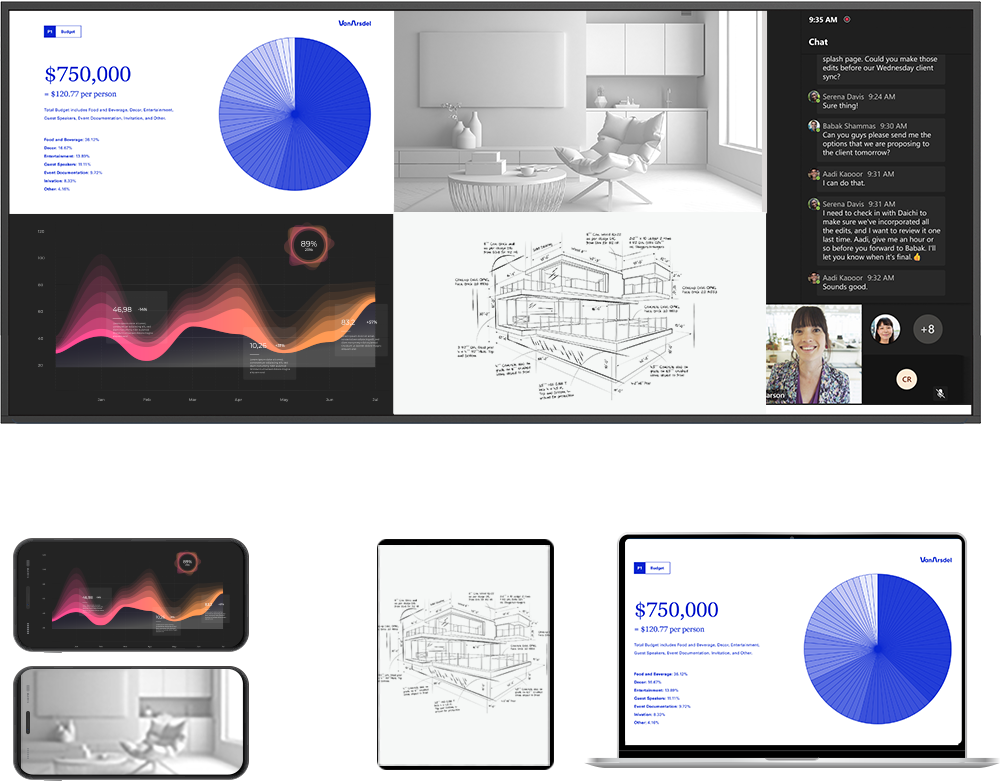

The 21:9 ratio is the ultimate answer to maximizing screen real estate. See your colleagues, share content, brainstorm and communicate all simultaneously.
pic

COMMERCIAL
DISPLAY

Get your message across loud and clear. Bigger is better when it comes to leaving a lasting impression.
pic

COMMAND AND
CONTROL

Views that reach beyond what the eye can see. Keep your finger on the pulse without missing a visual beat.
pic

Recommended Products

placeholder
XCore Kit
Microsoft Teams Rooms Solution
placeholder
UC S07
All-in-one Ultra-HD USB Videabar
placeholder
UW Series 92"
MAXHUB Commercial Display

Recommended Products

placeholder
XCore Kit
Microsoft Teams Rooms Solution
placeholder
UC S07
All-in-one Ultra-HD USB Videobar
placeholder
UW Series 92"
MAXHUB Commercial Display

Recommended Products

placeholder
UW Series 92"
MAXHUB Commercial Display

Recommended Products

placeholder
UW Series 92"
MAXHUB Commercial Display
pic

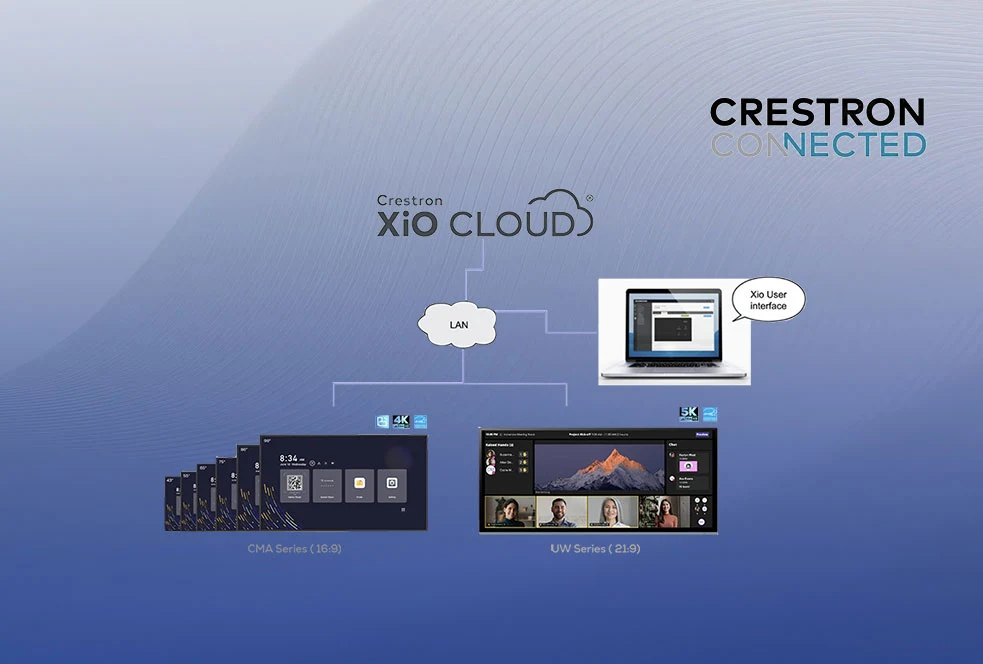

COMPLETE REMOTE DEVICE CONTROL

Easy-to-use functionality compatible with major control and automation tools offered by companies such as Crestron, Q-SYS and Extron.
pic

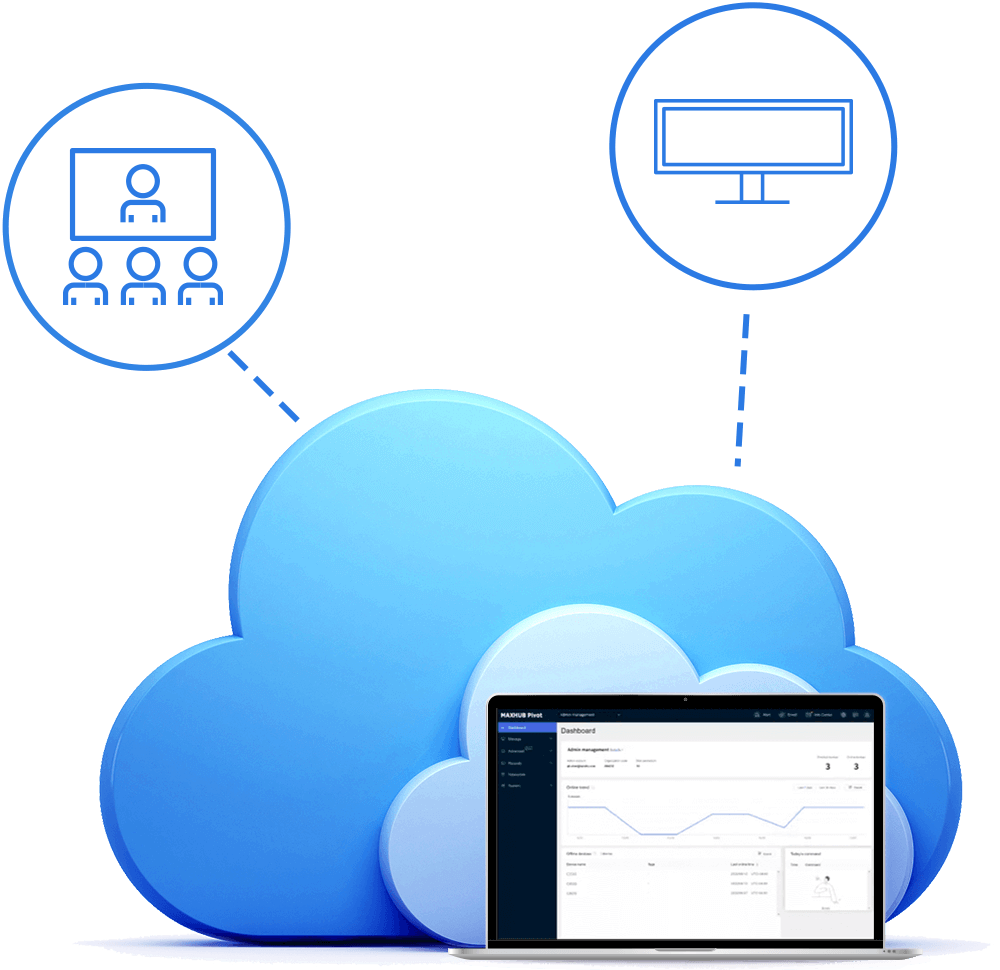

MAXHUB DEVICE
MANAGEMENT

MAXHUB Pivot equips a streamlined remote control device management system. Smooth, fuss-free interactions every time.
pic

SET-UP FOR BYOM

This is the ultimate package for collaborative meetings. Simply connect and play with automatic activation of the device's screen and external audio/video devices. The 2×20W+20W built-in speakers support a 2.1 channel configuration, revitalizing content sharing for maximum impact.
pic

WIRELESS SHARING

Instantaneous device-to-screen sharing courtesy of the MAXHUB Share App. Elevate collaboration by enabling up to nine devices to simultaneously share screens. Share more, learn more, do more.
pic

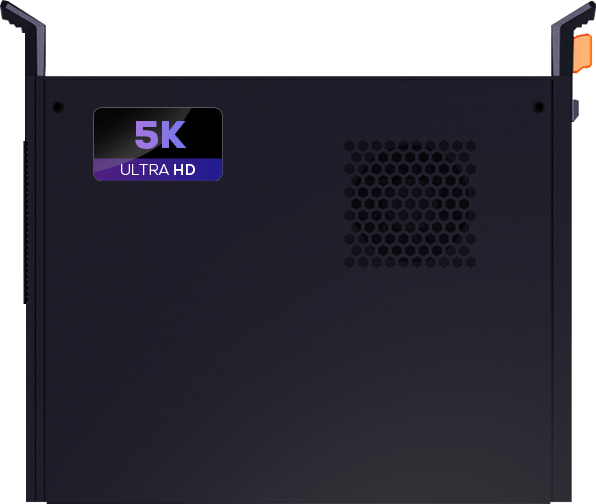

OPS FUNCTIONALITY

Intelligently built-in OPS slots enable effortless switching between Android and Windows operating systems.

EXPLORE OPTIONS

Experience a new level of immersion with MAXHUB UW Series. Choose from our range of products, and unlock limitless possibilities for visual display needs.
pic pic pic

PRODUCT SPECIFICATIONS

Display

Model
UW92NA
UW105NA
Screen Size (Inch)
92
105
Aspect Ratio
21:9
21:9
Panel
VA
VA
Backlight
DLED
DLED
Brightness
600 nits
400 nits
Haze
25%
25%
4mm protection glass
Resolution
5120 × 2160
5120 × 2160
Refresh Rate
60Hz
60 Hz
Contrast Ratio
5000:1 (typ.)
4000:1 (typ.)
Viewing Angle
(H / V)
178° / 178°
178° / 178°
Display Orientation
Landscape / Portrait
Landscape
Operation Hours
(Hours / Day)
24 / 7
16 / 7
Response Time
6.5ms
6.5 ms
Life Time (50%)
≥50,000 hours
>50,000 hours

Built-in System

Operating System
Android 13.0
Android 13.0
CPU
A76 × 4 + A55 × 4
A76 × 4 + A55 × 4
GPU
Mali-G610 MP4
Mali-G610 MP4
RAM
8 GB
8 GB
ROM
64 GB
64 GB
System OS
MAXHUB Meeting OS V6
MAXHUB Meeting OS V6
Screen share
MAXHUB Share
Support BYOM / Miracast / Airplay / Chromecast
MAXHUB Share
Support BYOM / Miracast / Airplay / Chromecast
Device Management
MAXHUB Pivot
MAXHUB Pivot
Protocal Control
RS232 / IP control
RS232 / IP control
Special Features
Screen rotation / Auto input change / Play via URL / Wake on LAN / HDMI CEC / Compatible with control systems (Crestron, Q-SYS, and Extron)
Auto input change / Play via URL / Wake on LAN / HDMI CEC / Compatible with control systems (Crestron, Q-SYS, and Extron)

Connectivity

Input
HDMI IN × 4 HDMI 2.0 × 3, HDMI 2.1 × 1
USB 2.0 × 1
USB 3.0 × 4
USB Type-C × 1
DP IN × 1
AUDIO IN × 1
RS232 × 1
RJ45 IN × 1
HDMI IN × 4 HDMI 2.0 × 3, HDMI 2.1 × 1
USB 2.0 × 1
USB 3.0 × 4
USB Type-C × 1
DP IN × 1
AUDIO IN × 1
RS232 × 1
RJ45 IN × 1
Output
HDMI OUT × 1
TOUCH 2.0 × 3
AUDIO OUT × 1
SPDIF × 1
RJ45 OUT × 1
HDMI OUT × 1
TOUCH 2.0 × 3
AUDIO OUT × 1
SPDIF × 1
RJ45 OUT × 1
OPS Slot
Module slot × 1
Module slot × 1
Wi-Fi
Wi-Fi 6
Wi-Fi 6
Bluetooth
5.2
5.2

Audio

Sound Channel
2.1
2.1
Speaker Power
2 × 20W + 20W
2 x 16W + 15W

Power

Power Supply
100-240V~50/60Hz
100-240V~50/60Hz
Power Consumption
(Energy Saving)
177 W
179 W
Power Consumption
(Typ.)
320 W
550 W
Power Consumption
(Max.)
530 W
665 W

Physical Specification

Bezel Width
(L × R × T × B)
17.9 / 17.9 / 17.9 / 17.9 mm
0.7 / 0.7 / 0.7 / 0.7 inch
29.4 / 29.4 / 29.4 / 58.1 mm
1.16 / 1.16 / 1.16 / 2.29 inch
Dimension
(W*H*D)
2182 × 944 × 85 mm
85.90 × 37.16 × 3.35 inch
2511 x 1124 x 97mm
100.55 x 44.25 x 3.82 inch
Shipping Dimension
(W*H*D)
2360 × 1072 × 225 mm
92.91 × 42.20 × 8.86 inch
2668 x 1305 x 280mm
105.04 x 51.34 x 11.02 inch
VESA
800 × 600 mm
1000 x 400 mm
Net Weight
43.40 Kg
89.4kg
Gross Weight
62.60 Kg
119.5kg

Environmental Conditions

Operating Temperature
0°C~40°C
0°C~40°C
Storage Temperature
-20°C~60°C
-20℃~60℃
Operating Humidity
10%~90%RH
10%~90%RH
Storage Humidity
10%~90%RH
10%~90%RH

Certification

Energy Star
Y
Y
IP Rating
IP5X
IP5X

Warranty

Display
3 years warranty
3 years warranty

Accesories

Power Cord
HDMI Cable
Remote Control
Wall Mount
Wireless Adapter

Optional Module

OPS
OPS62A / OPS72A
OPS62A / OPS72A
Mobile Stand
ST41B / ST23C
ST41B
(Avoid mounting at the highest hole position)
