Specifications
MAXHUB SPEAKERPHONE
Bluetooth Speakerphone for Teleconferencing
360° Omnidirectional Voice Pickup1 | Crystal Clear Sound Effect | Wireless Charging2 | 8-hour Playtime3
Brochure

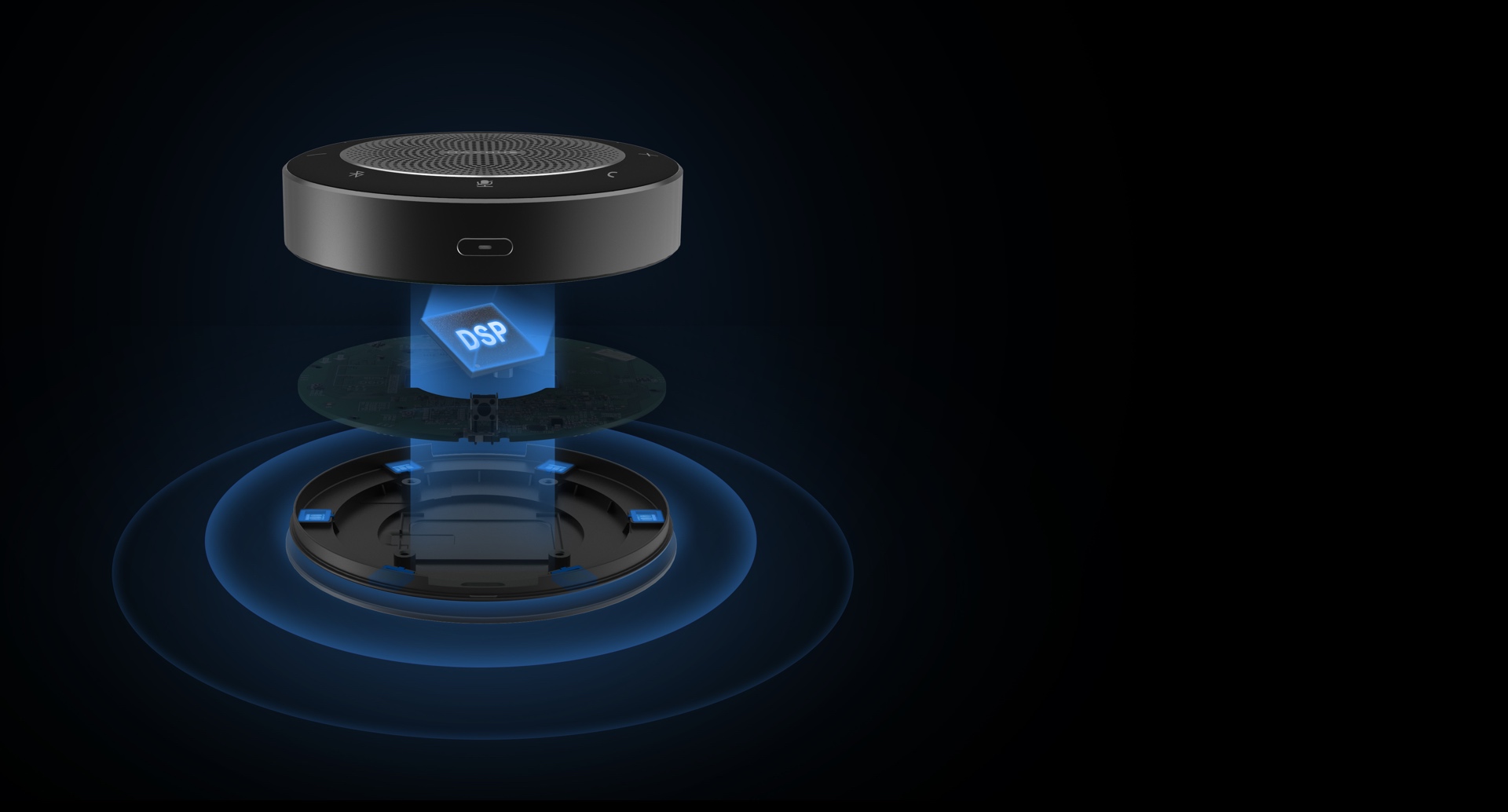

Crystal Clear Calls
Built-in high-performance large dynamic speakers, with
intelligent noise reduction and echo cancellation algorithms, and
PZM structure design bring you high-quality voice experience.
PZM
Structure Design
Acoustic Echo
Cancellation
High Performance
Speakers
Omnidirectional1
Making Your Voice Heard
MAXHUB Speakerphone supports 360-degree omnidirectional audio pickup
to receive the voice from every seat in a meeting room.
6-Element
Microphones
360°
Omnidirectional
5 Meters4
Voice Pickup Radius

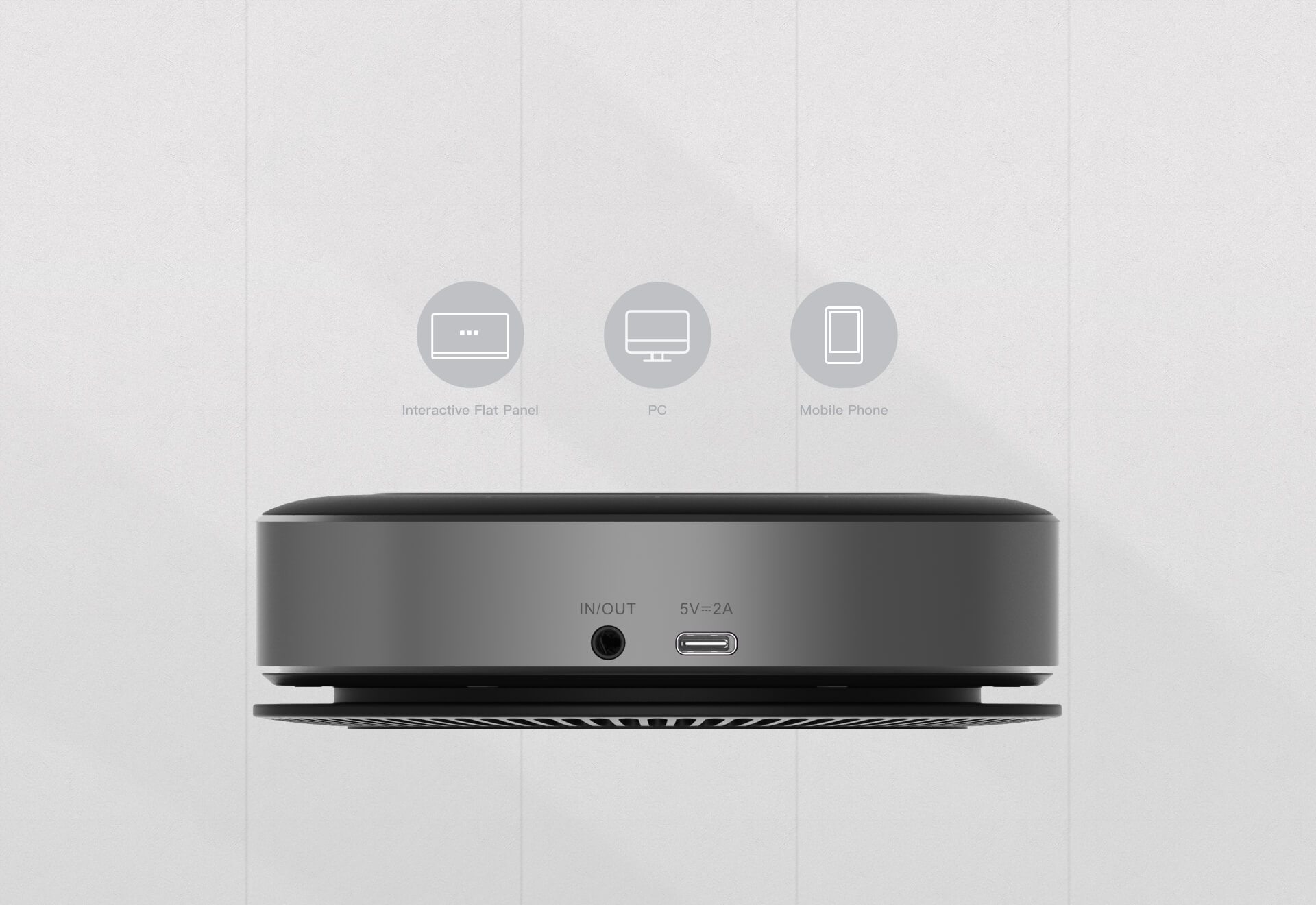

Set up in Seconds
Seamless Connection5
Connect via Bluetooth, a USB cable or an audio cable
Plug and Play
Instantly operational after connection
Multiple Devices Connection
Connects up to 3 devices at the same time

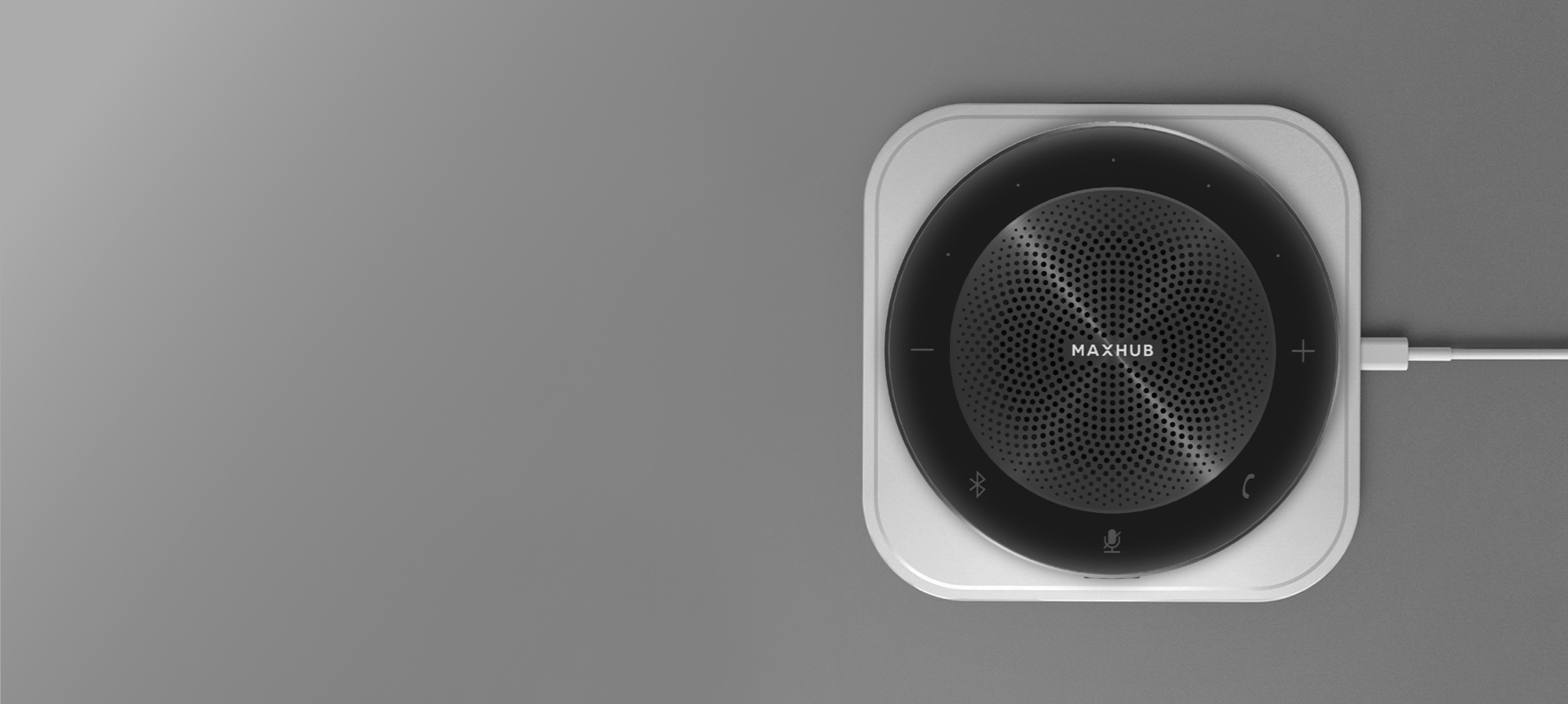

Wired & Wireless Charging2
Supports 8-hour of playtime on a single charge
8 Hours3   USB Cable & Charging Pad2
Durable battery life Either way, charging could be easy

1.To support 360°omnidirectional audio pickup, MAXHUB Speakerphone needs to be unobstructed.
2.Wireless charging is optional, and an extra wireless charger is required for this function.
3.Based on tests results from MAXHUB Lab, the actual usage time depends on the environment and battery consumption.
4.Based on tests results from MAXHUB Lab, test environment is within a meeting room with reverberation time less than1s, voice being recognizable identified as effective audio pick up.
5.To achieve ideal results, MAXHUB recommends using MAXHUB USB cables and MAXHUB audio cables, which are boxed (which are boxed) together with MAXHUB Speakerphone

MAXHUB Speakerphone
Audio Pick-up
Pickup Distance
5 meters radius
Microphone
6 array microphones
Frequency
100 Hz-15kHz
Sensitivity
-38dBV
Signal to Noise Ratio
65dB
Amplification
Maximum Sound Pressure Level
90dB SPL@0.5m, 1kHz
Distortion
≦1% @1W/1kHz
Signal-to-noise Ratio
≤5%
Signal to Noise Ratio
≤≥75dB%
Frequency Response
150Hz~15kHz
Input/Output
Port
USB Type C (audio in/out + charge 5V/2A)
AUX 3.5MM (audio in/out)
Bluetooth
BT4.2+EDR
Mode
Music mode/call mode (under Bluetooth mode)
Buttons
6 (power, answer/hang up, mute, Bluetooth, volume+, volume-)
Indicator Light
Power & Volume Indication
Physical Specification
Dimension (Diameter*Height)
120mm*35mm
Net Weight
380g
Color
Dark Gray
Battery
Battery Capacity
7.4V/2200mAh
Charging Requirement
Wire 5V/2A
Wireless 5W/dual mode (optional)
Lifetime on a single charge
Up to 8 hours
Environment Requirements
Operating Temperature
0℃~40℃
Storage Temperature
-20℃~60℃
Storage Humidity
10%~90%
Operating System
Android 8.0
Operating Altitude
5000 meters and below
*Data are from MAXHUB laboratory
