MAXHUB - Smart Blackboard

Explore innovative participation

An intuitive way to teach

Designed for classroom efficiency

Explore innovative participation

Diverse Writing Options

A seamless writing experience is offered across the entire screen, thanks to the screen’s etched AG glass technology that supports smooth writing with various writing tools. These include original chalk, dustless chalk and liquid pens.

Experience engaging images

Experience clear images and presentations with our high-color gamut and ultra-HD 4K display, capable of displaying 1.07 billion colors in accurate detail.

Eye Care Technology for Increased Productivity

Our Smart Blackboard incorporates TÜV eye comfort, Low Blue Light and Flicker-Free certifications, offering a solution to reduce eye fatigue and visual discomfort.

These essential certifications and features are particularly beneficial for teachers and students who spend extensive hours in front of the screen, ensuring a comfortable and productive learning environment.

Immersive Audiovisual Capabilities

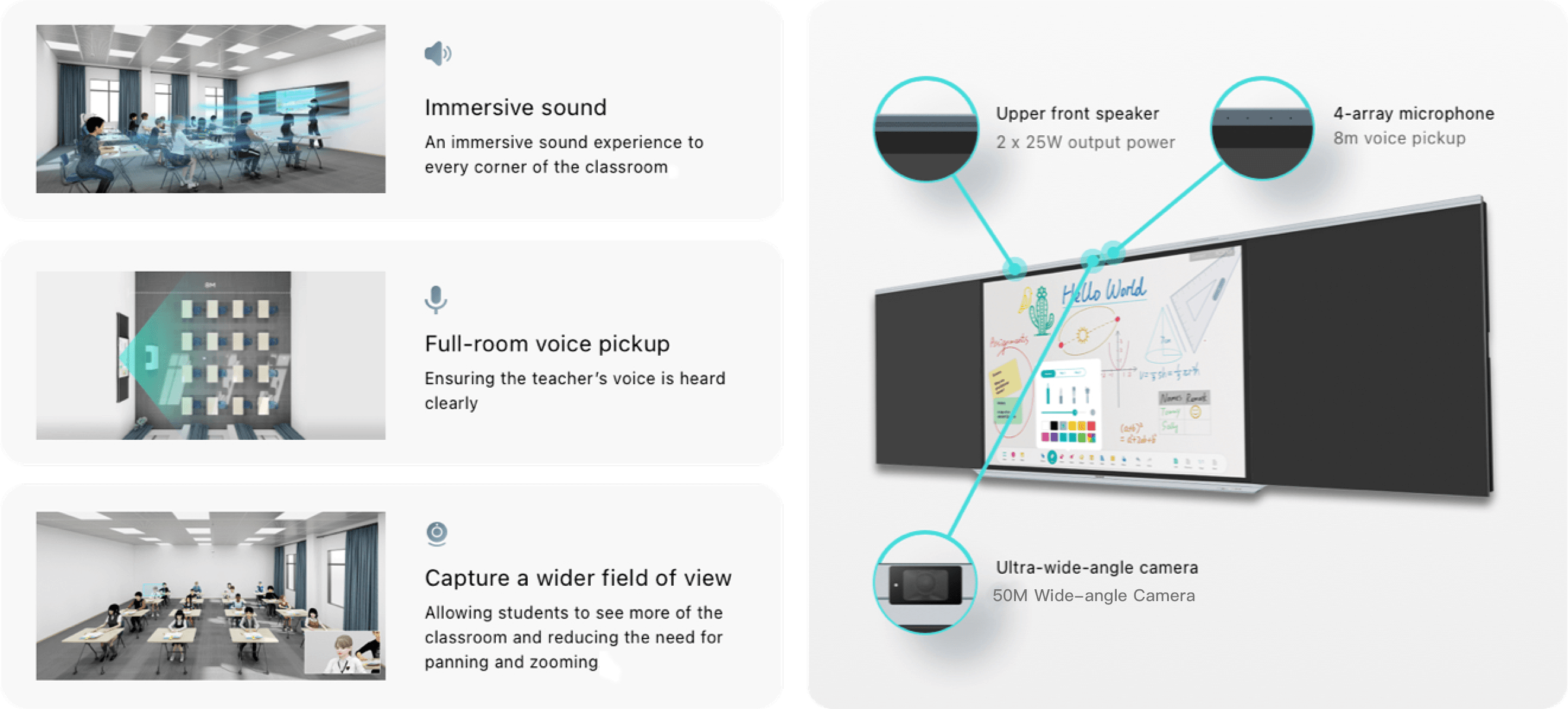

This all-in-one Smart Blackboard is equipped with a powerful camera, microphone and speaker, which facilitates more interactive learning experiences, including hybrid classes.

An Intuitive Way to Teach and Learn

The all-in-one video, audio, touch, network and charging transmission is facilitated by the front-facing Type-C interface. It allows for audio and display support of up to 4K @ 60 fps and charging capabilities of up to 65W. It also allows laptop internet access.

Functional education, interactive learning

MAXHUB EDU OS V3.0 includes a brand new UI design that features shortcut keys for quick access to teaching functions, and improves classroom efficiency.

MAXHUB EDU OS

Simple tech inspires teaching. An operating system designed for education, any teacher can easily make teaching exciting.

Learn More

MAXHUB Class

An easy-to-use software that provides powerful tools for educators,to engage with learners and achieve extraordinary learning outcomes.

Learn More

MAXHUB Connect

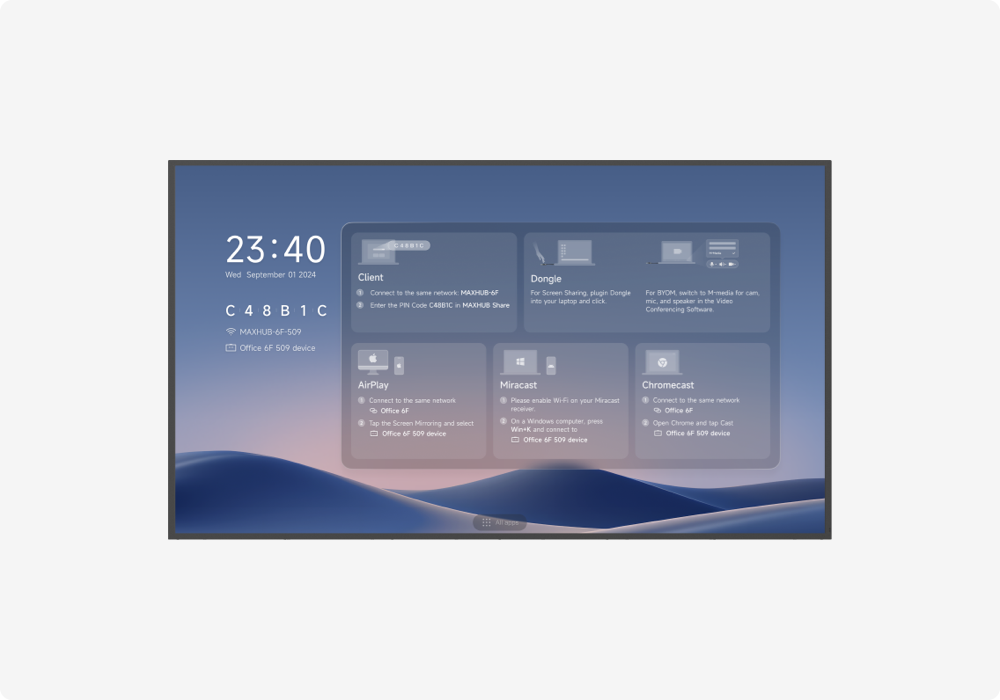

A wireless screen mirroring software, smooth streaming PC or mobile phone to large display. Supporting mirroring up to 9 screens to create a collaborative space.

Learn More

Remote IT Management for Improved Efficiency

Reduce equipment failure rate and ensure classroom efficiency. IT personnel can conduct remote monitoring and management of equipment at all times without the need to visit the classroom in person by using MAXHUB Pivot - the self-developed cloud platform for equipment management and monitoring software.

Designed for Classroom Efficiency

Beautiful and Functional Classrooms

A fully metal screen integrates the traditional push-pull blackboard with the interactive flat panel, simplify the structure of the multi-function screens and offer an all-in-one design for both form and function.

Safety First

Circular arc transitions in the corners are reduced to avoid student collisions or personal injury and damage to equipment.

Performance You Can Count on

Never miss out on any details of class. Phenomenal quality, backed by a 3-Year Hot Swap Warranty, gives you confidence that MAXHUB solution will be ready when you are.

Product Specifications

Open

Display

Model B8610

Diagonal Size (inch) 86

Display Area 1895.04(H) x 1065.96(V)mm

Aspect Ratio 16:9

Resolution 3840 x 2160

Viewing Angle 178° (H/V)

Brightness (Typ.) 400cd/m2

Contrast Ratio 4000:1 (Typ.)
8000:1 (Dynamic)

Color Depth 1.07B (10bit)

Color Gamut (Typ.) 72% NTSC

Color Accuracy Delta E≤1.5

Glass Zero parallax, 3.2mm thickness, 9H Tempered

Surface Technology Anti-glare, Etched AG Technology
Support writing with ordinary chalk,
dustless chalk and liquid pens

Eyes Care TÜV Eye Comfort
TÜV Flicker Free
TÜV Low Blue Light

Refresh Rate 60Hz

Response Time 8ms

Backlight Unit DLED

Backlight Life (typ.) ≥ 50,000 Hours

Connectivity

Input HDMI IN x 3
USB 2.0 x 1
USB 3.0 x 4
USB Type-C x 1
VGA IN x 1
AUDIO IN x 1
RS232 x 1
RJ45 IN x 1

Output HDMI OUT x 1
TOUCH OUT x 2
AUDIO OUT x 1
SPDIF x 1
RJ45 OUT x 1

OPS Slot Module Slot x 1

Wifi Slot Module Slot x 1

Touch System

Touch Technology Infrared recognition

Touch Point 20 Points touch

Object Recognition Range 3mm

Accuracy ± 2mm

Response Time ≤ 9ms

Supported Operating System (Touch Return) Windows 10/Windows 8/Windows 7/Windows XP/Android/Linux/Mac OS X/Chrome

Built-in System

Operating System Android 11.0

RAM 8GB

ROM 64GB

CPU 2.0GHz quad core ARM A55

GPU Mali-G52 MP2

Network Support WIFI6

Built-in Bluetooth Support Bluetooth 5.2

Camera/Audio/Microphone

Built-in Camera 16M 135°FOV

Video Recording 4K, 1080P, 720P

Built-in Microphone 4-Array Microphone

Microphone Pickup Range 0-8m

Speaker Output Power 2 x 25W (Max.)
Upper Front Speaker

Power

Power Supply AC 100~240V 50/60Hz

Power Consumption (Standby) ≤ 0.5W

Power Consumption (Maximum) 440W
